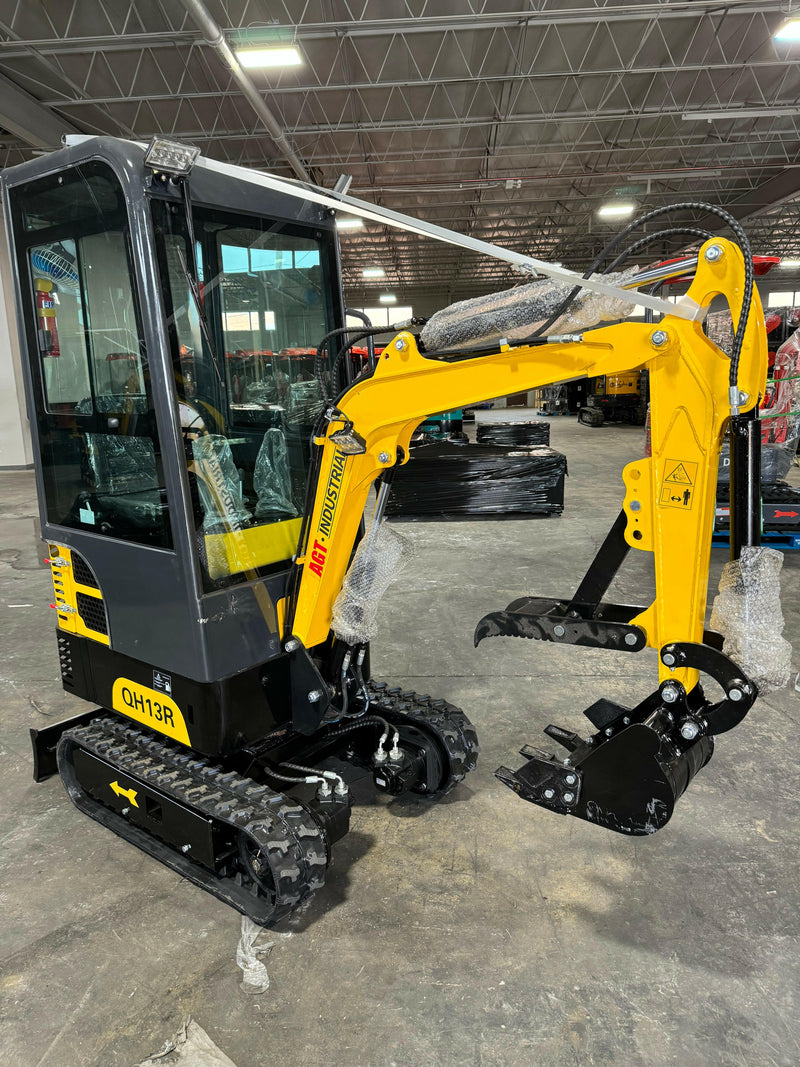

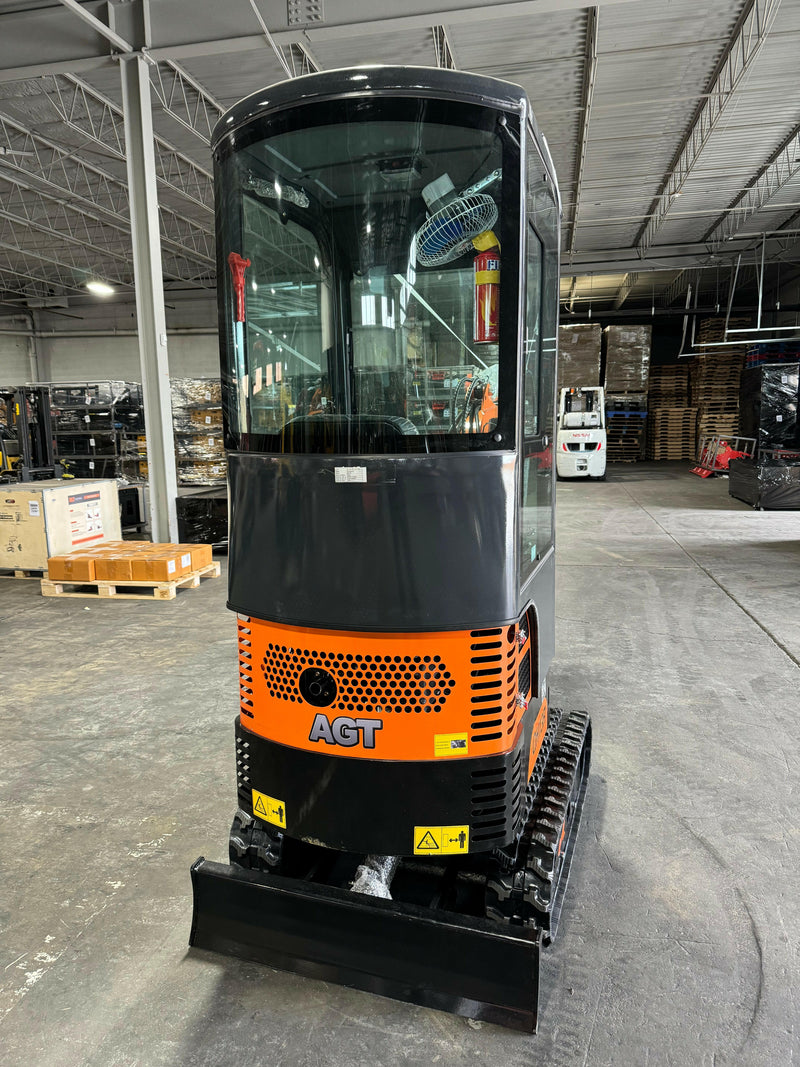

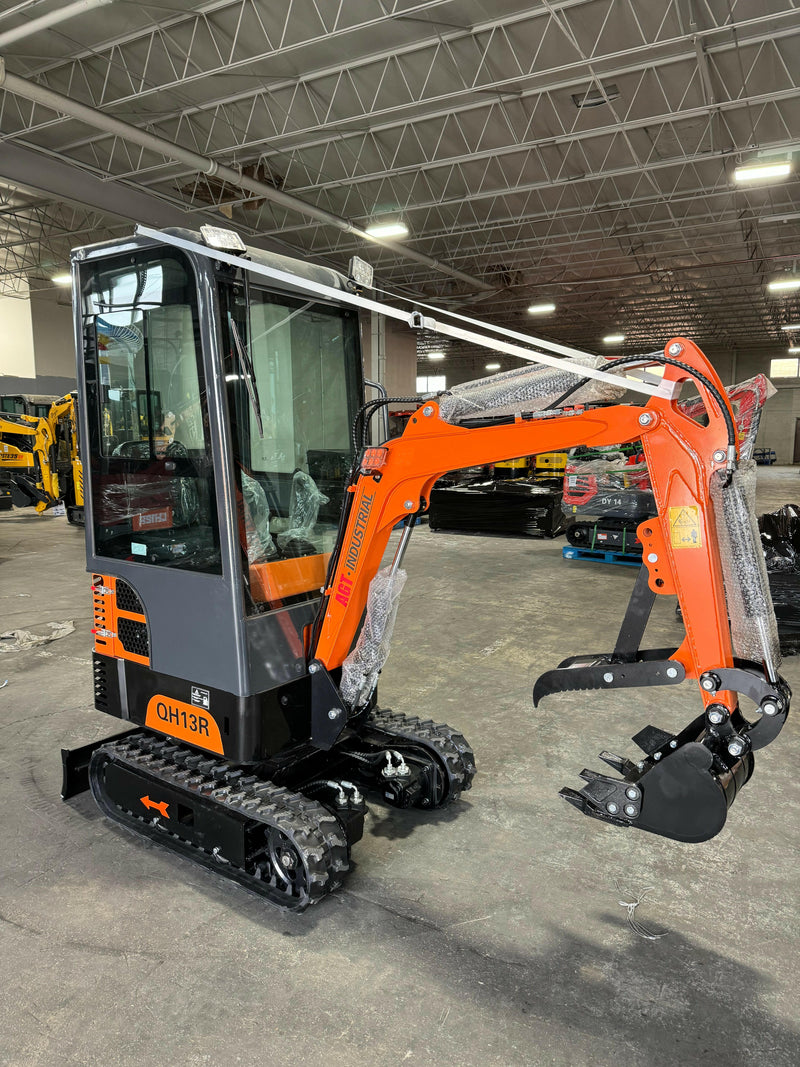

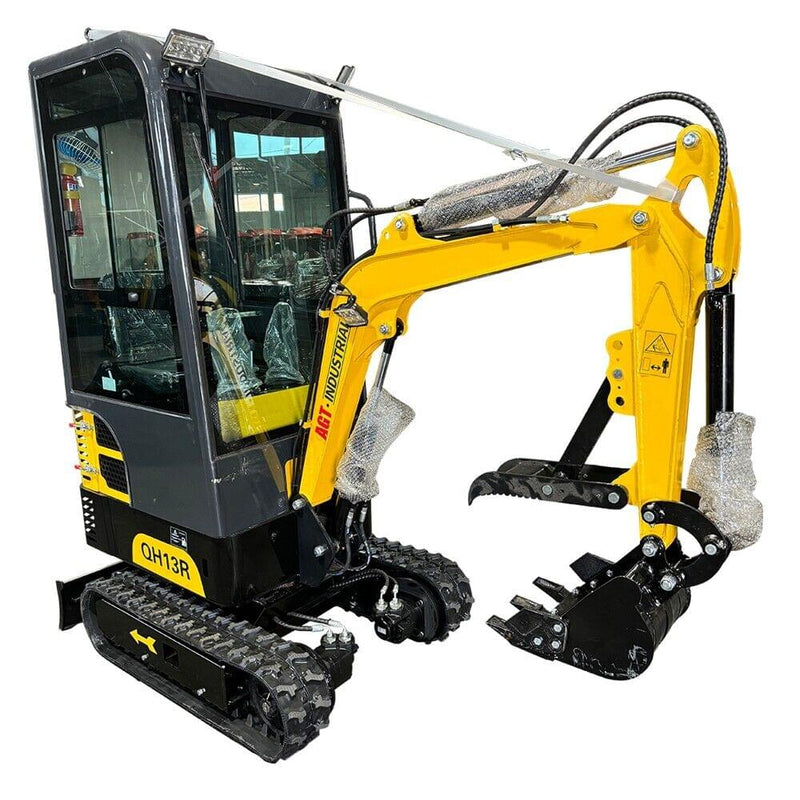

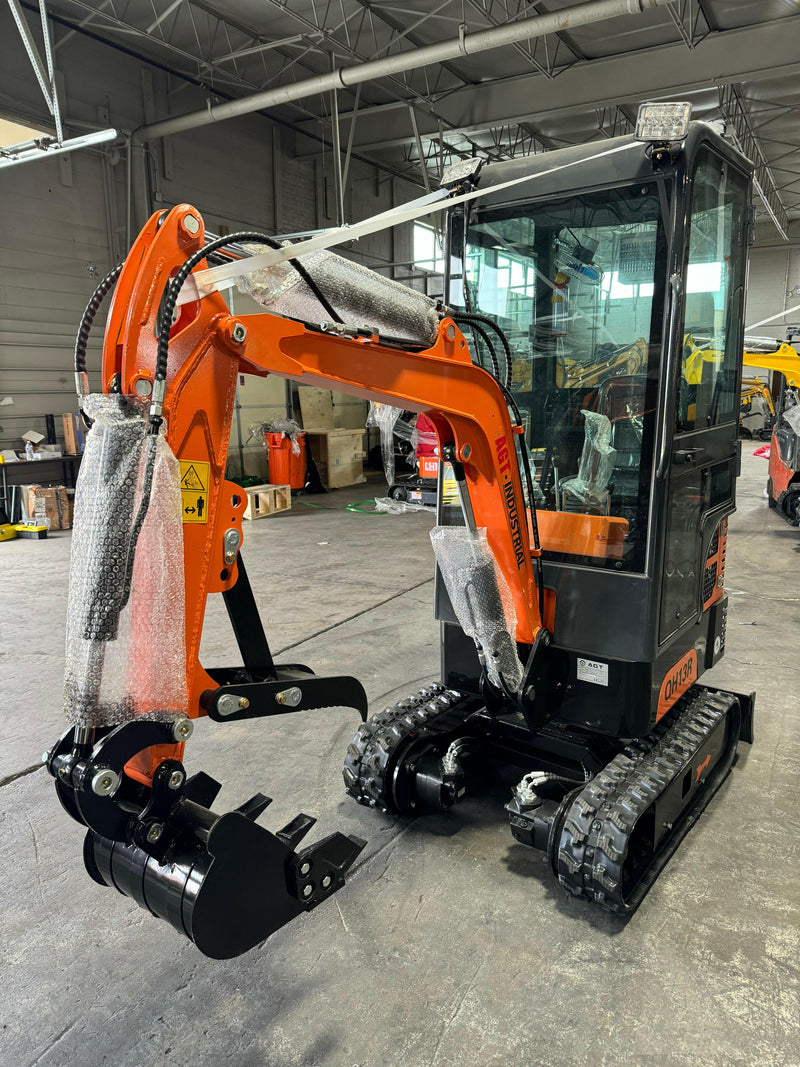

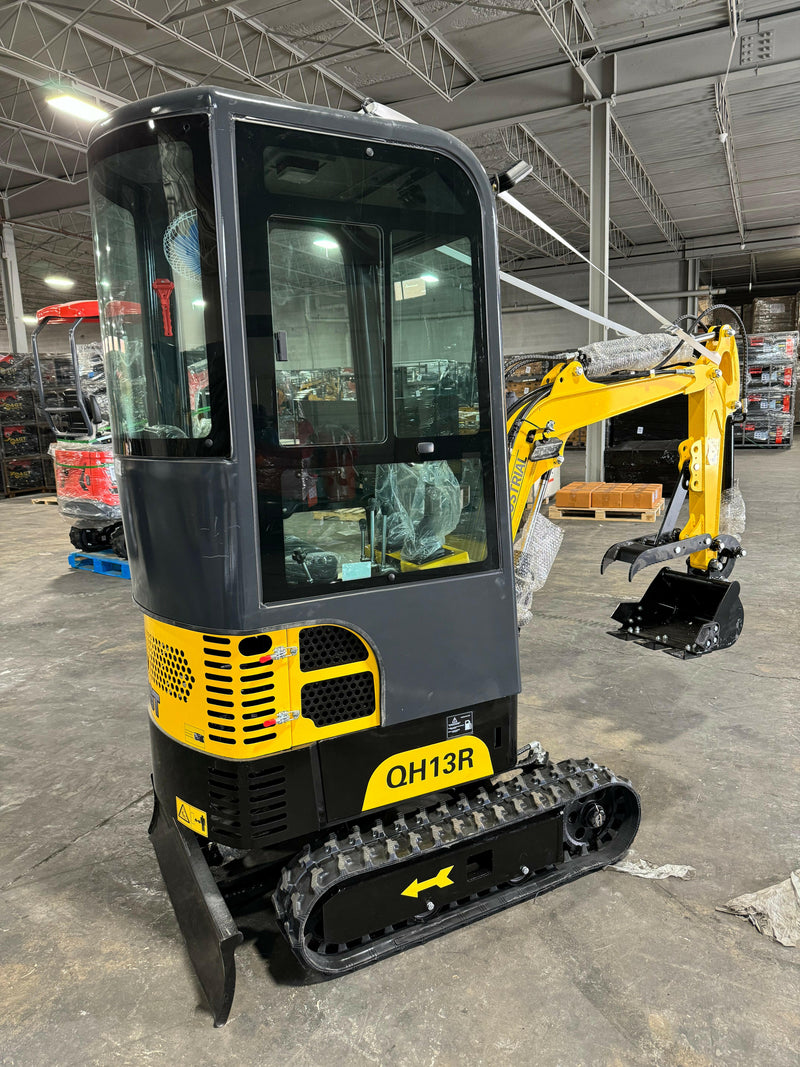

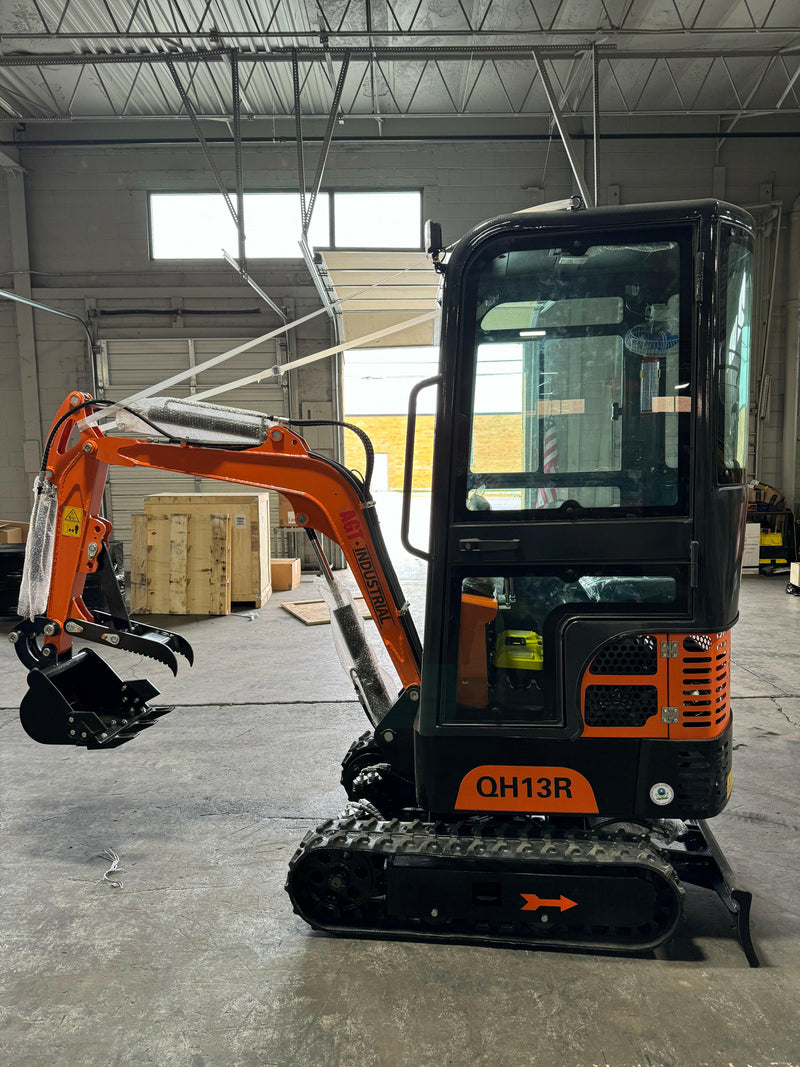

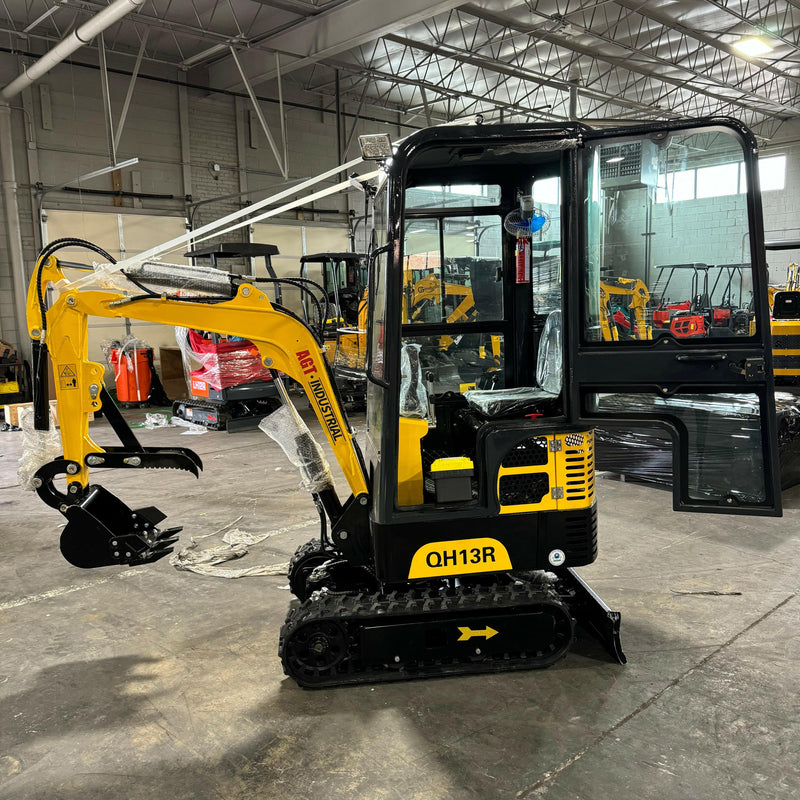

1-Ton, Mini Excavator w/ Enclosed Cab Gas Engine | AGT-QH13R

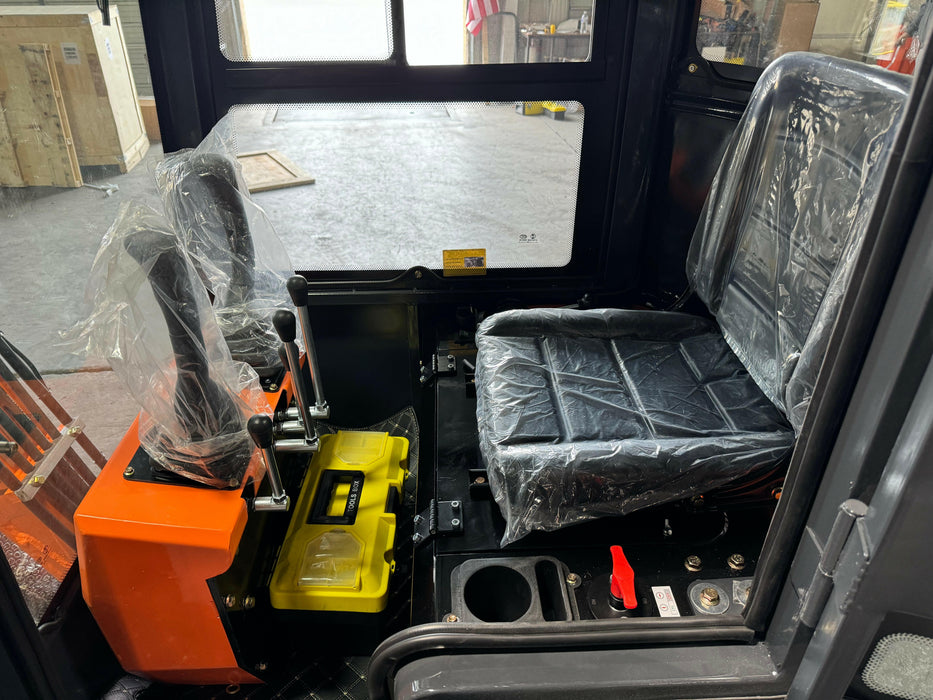

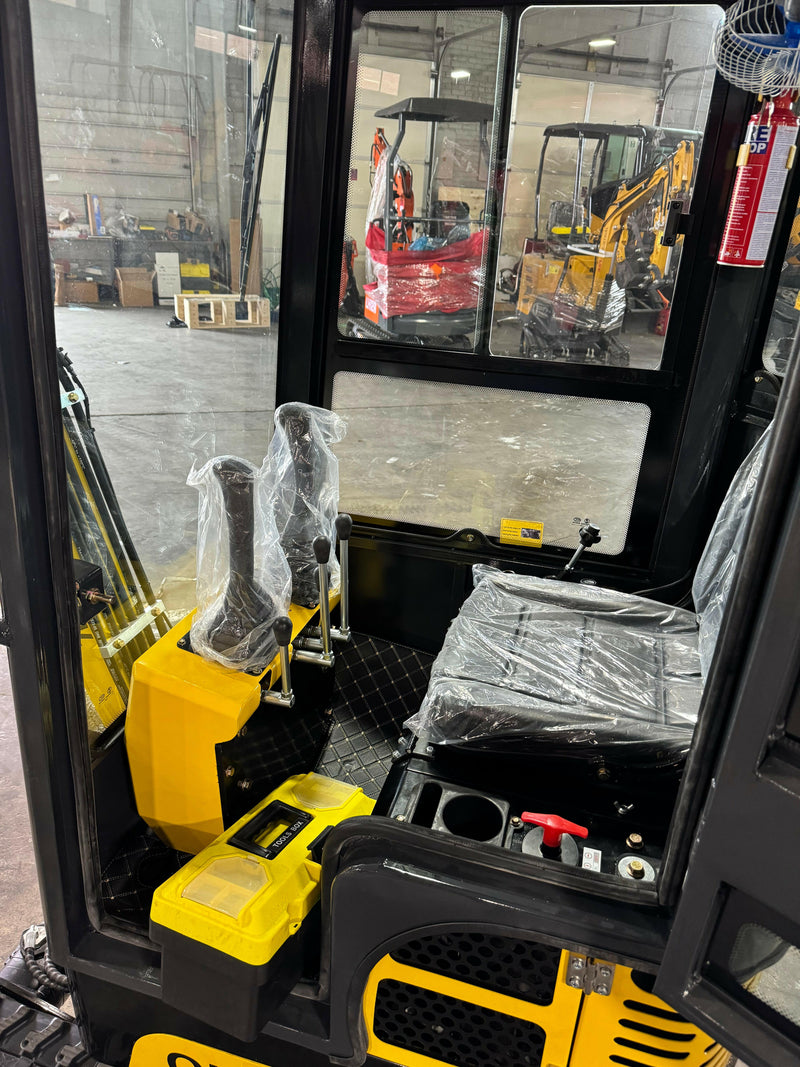

Excavators with cabs enhance comfort and safety by providing a closed environment that minimizes noise, dust, and environmental distractions during extended operations. Featuring large windshields and side windows for improved visibility, along with safety features like protective doors and emergency escape windows, they are ideal for complex job sites, from construction and mining to farming and roadwork. Their compact design ensures flexibility and maneuverability in tight spaces.
Technical Data:
- Operation Weight: 1 Ton
- Engine: R420D Gasoline
- Horse Power: 13.5
- Max Angle: 30 Degree
Specific Data:
Working Weight(lbs): 2121 lbs
Bucket capacity(cubic yards): 0.039 cubic yards
Climbing ability(%): 30%
Travel speed low/high speed(mph): 0-1.1
Hydraulic system:
Main pump type/model: gear pump/06
Rated set pressure (psi): 2320 psi
Multi-way valve: 8 joint multi-way valve
Travel hydraulic motor type: BM6-315
Rotary hydraulic motor type: BM2-315
Maximum flow rate of main pump (gallons per minute): 5.7 gpm
Basic Performance Parameters:
Maximum Digging Height(inches): 100.79 inches
Maximum Unloading Height(inches): 70.87 inches
Maximum Digging Depth(inches): 66.65 inches
Max. digging radius(inches): 120.47 inches
Overall Length(inches): 115.16 inches
Overall Height(inches): 95.35 inches
Overall Width(inches): 37.72 inches
Bulldozer Width/Height: 35.71 inches / 15.75 inches
Engine:
Engine Brand: RATO
Engine Model: R420D
Max. power(hp): 13 hp
Max. speed(rpm): 3600
Cylinders: 1
Cooling method: fan cooling
Engine oil change quantity(quarts): 1.16 quarts
Fuel Type: Gasoline
Fuel Grade: 92#
Theoretical fuel consumption(gallons per hour): 0.13-0.32 gph
