SKU AGT-DM12X-C

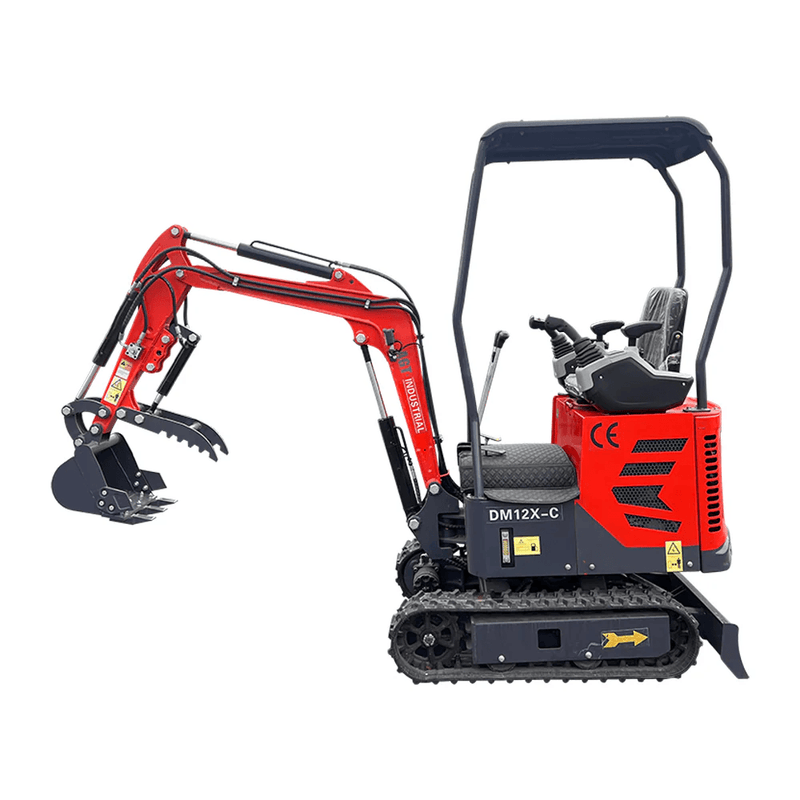

1 Ton, Upgraded Mini Excavator w/ Pilot Control Swing Boom and Hydraulic Thumb | AGT-DM12X-C
Sale
Original price
$8,500.00
Original price
$8,500.00
-
Original price
$8,500.00
Original price
$8,500.00
Current price
$6,999.00
$6,999.00
-
$6,999.00
Current price
$6,999.00

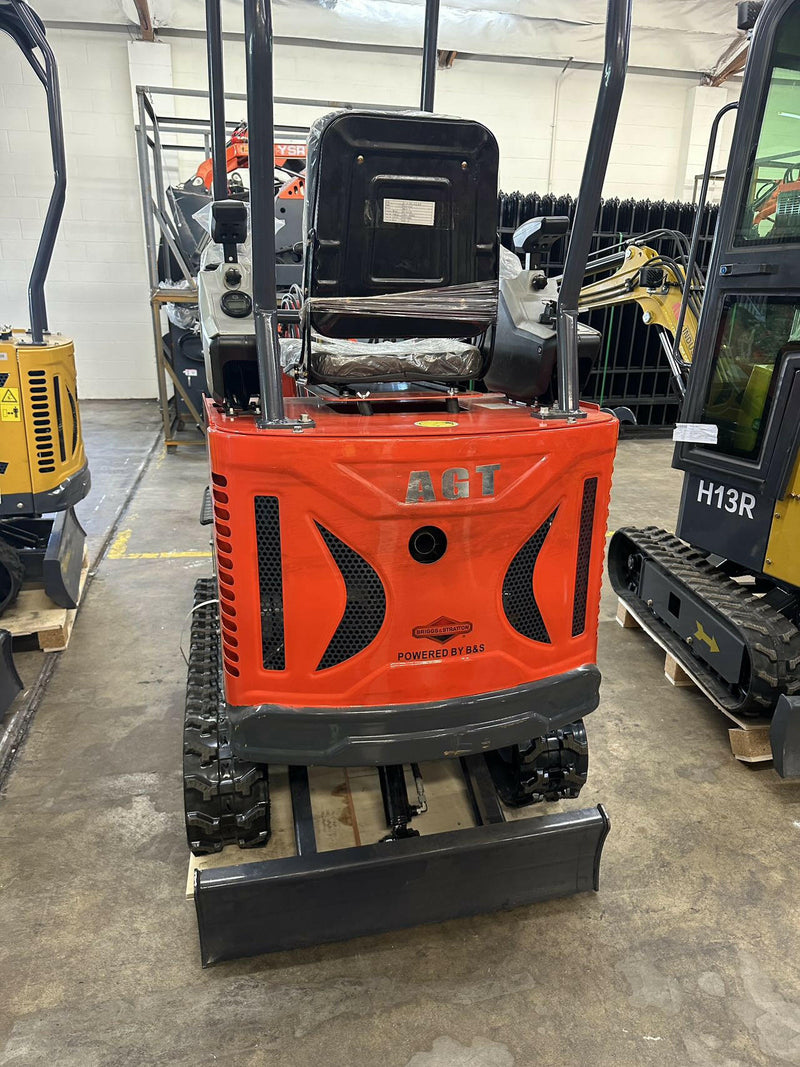

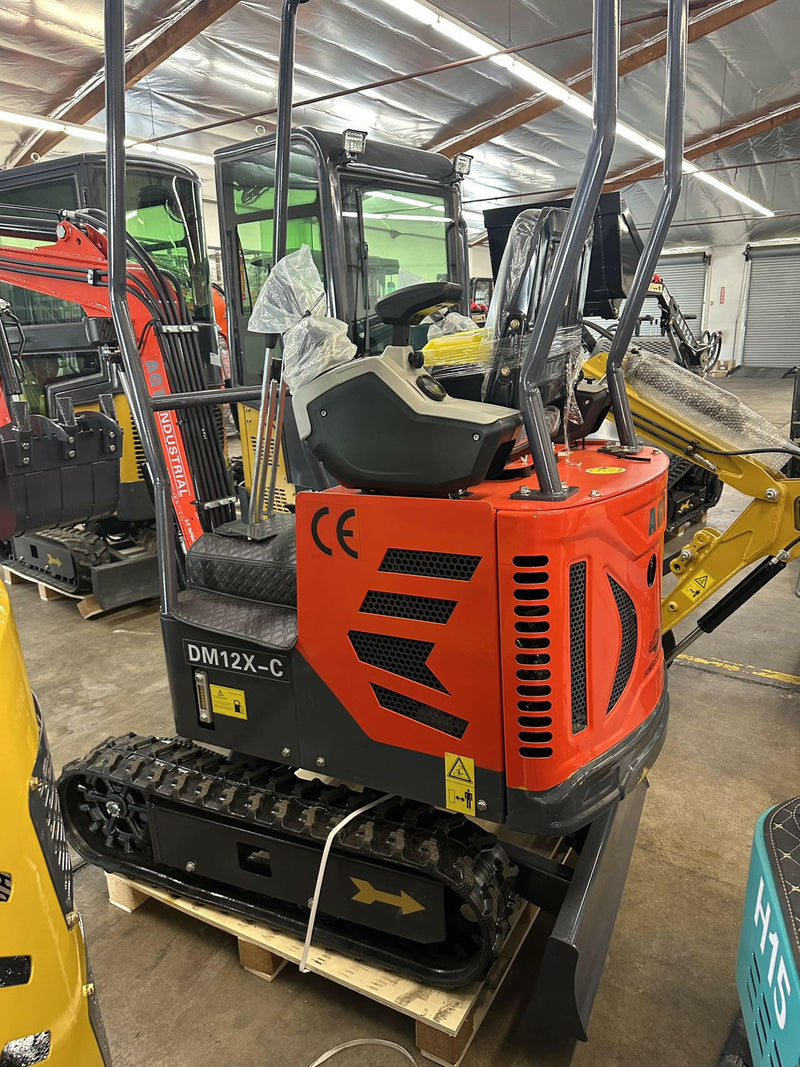

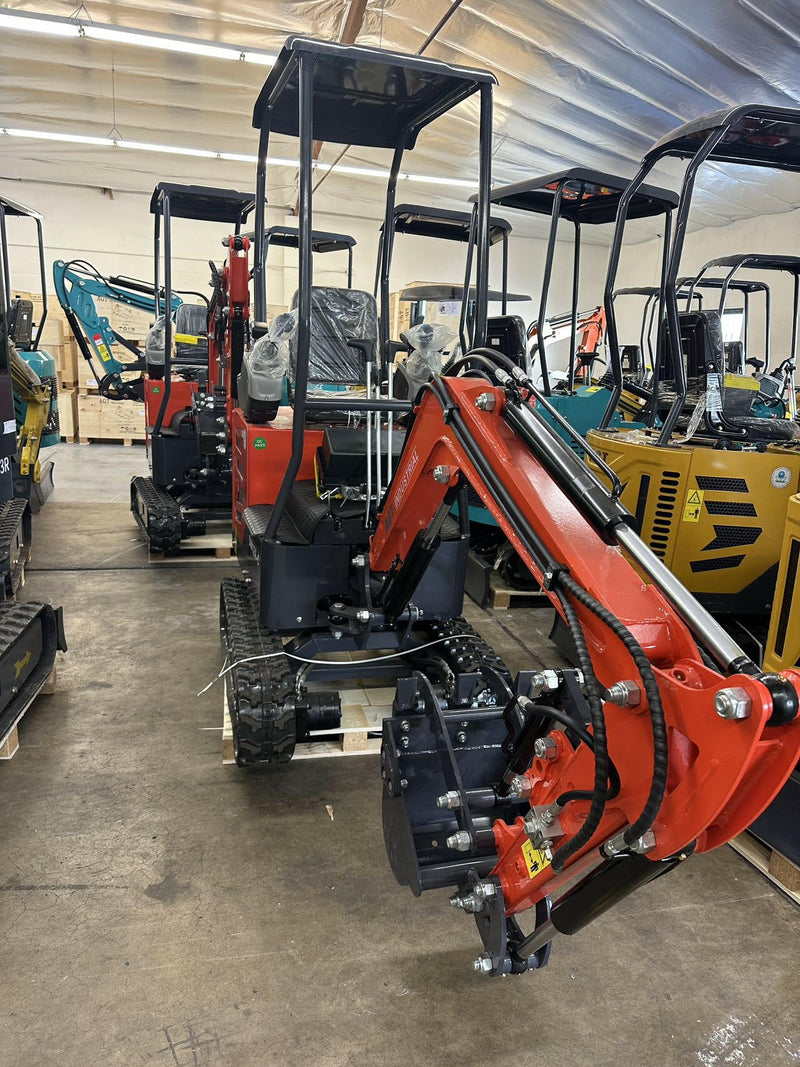

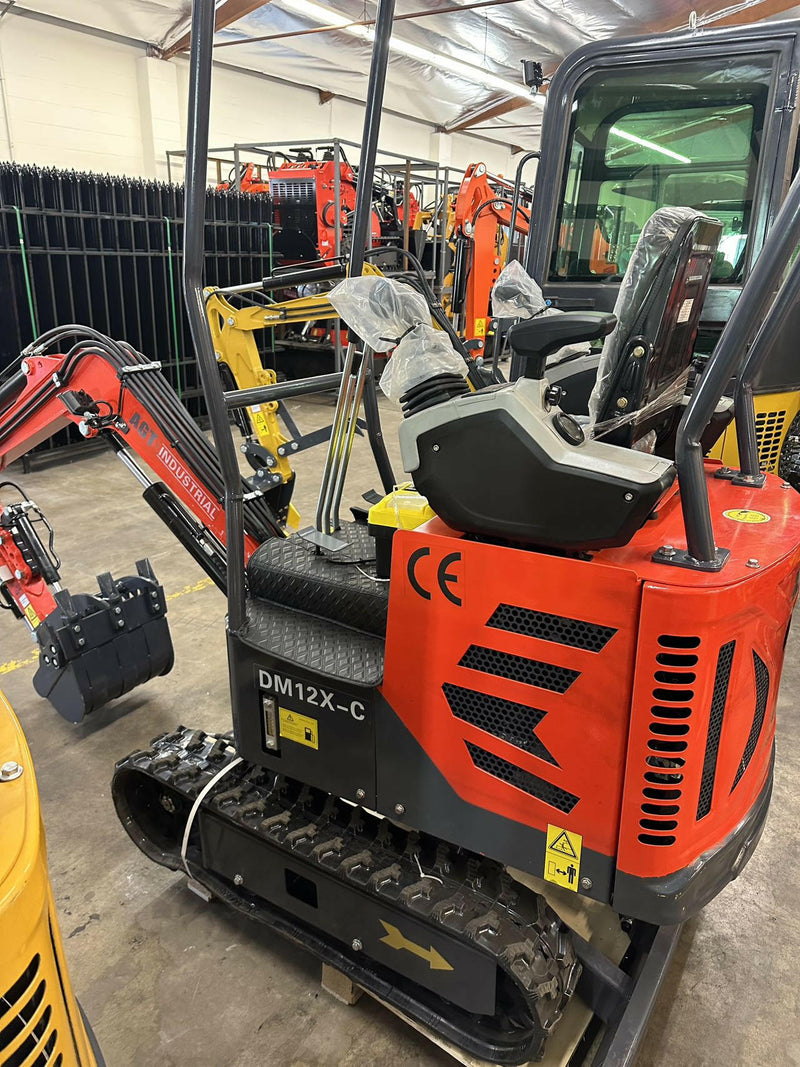

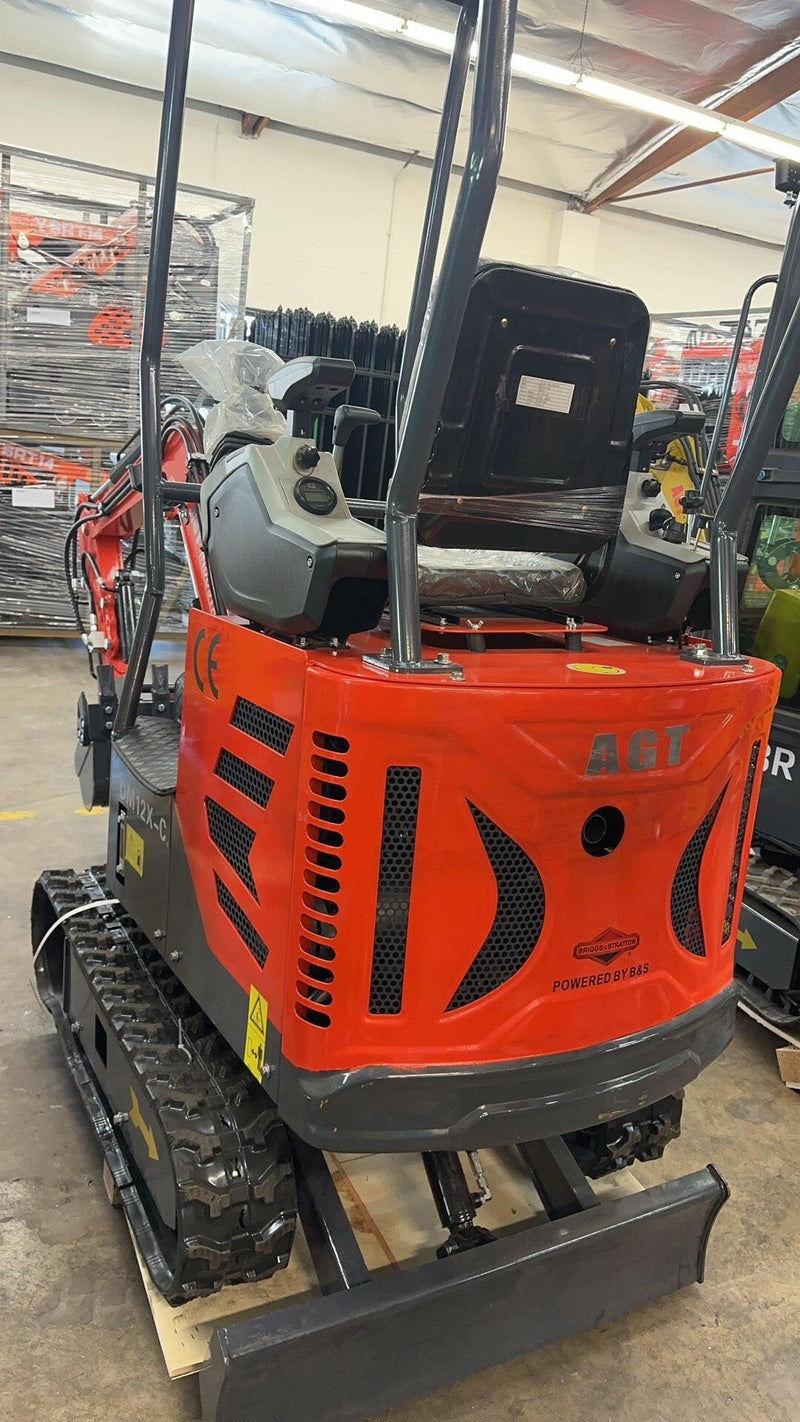

The DM 12X-C is a cutting edge mini excavator with upgraded components to eliminate overheating issues. It's an upgrade from our QH12 and H12 with a side swing boom, pilot controls and hydraulic thumb. Enjoy easy maintenance with convenient back bay engine access.
Technical Data:
- Operation Weight: 1.1 Ton
- Engine: B&S
- Horse Power: 13.3
- Max Angle: 30 Degree

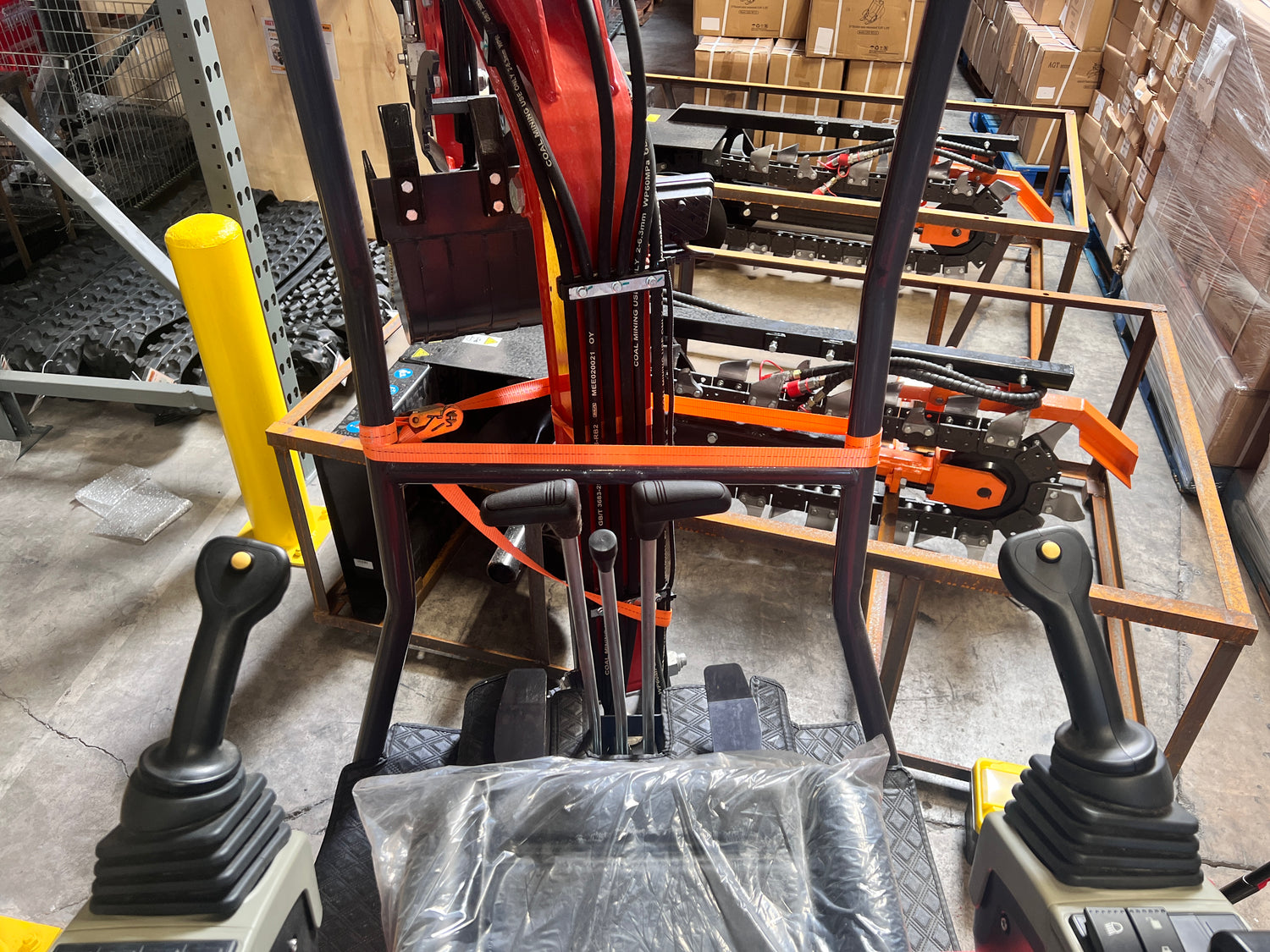

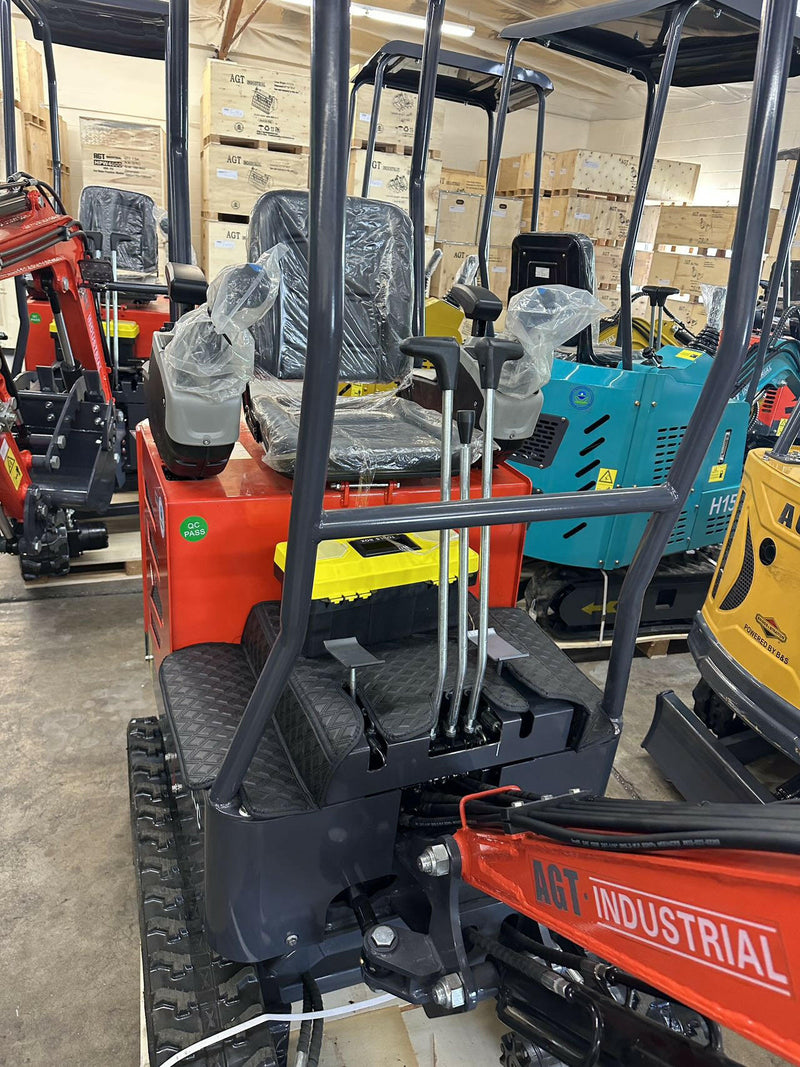

- Pilot Control

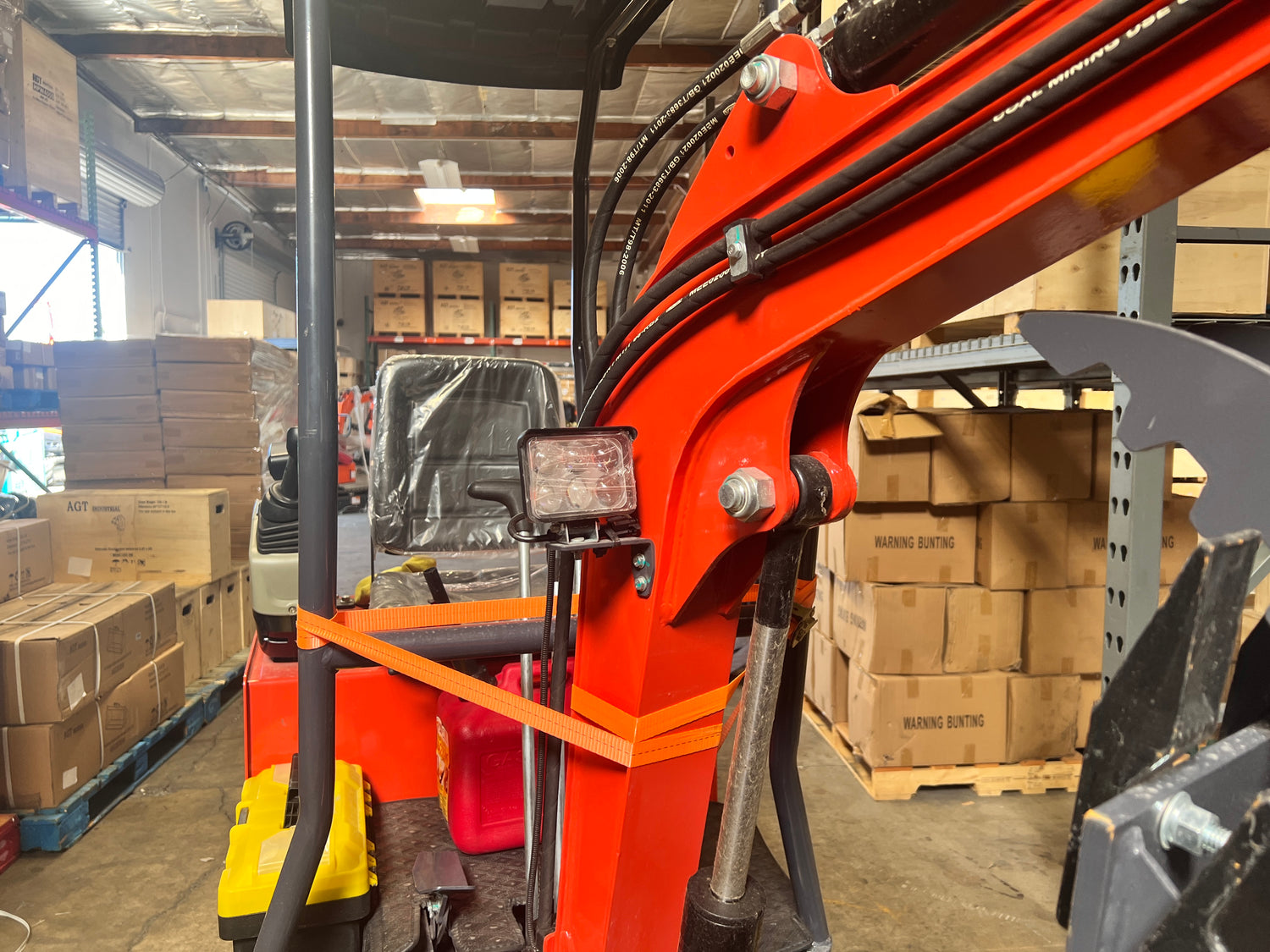

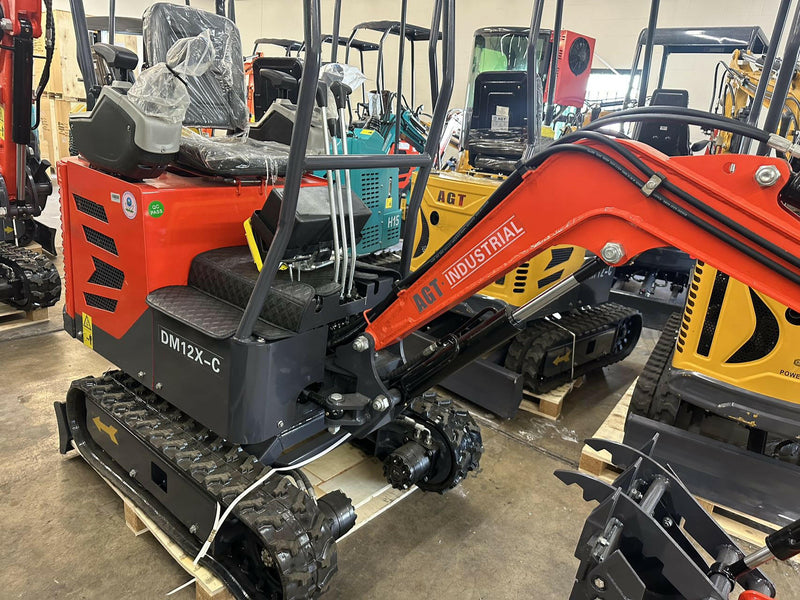

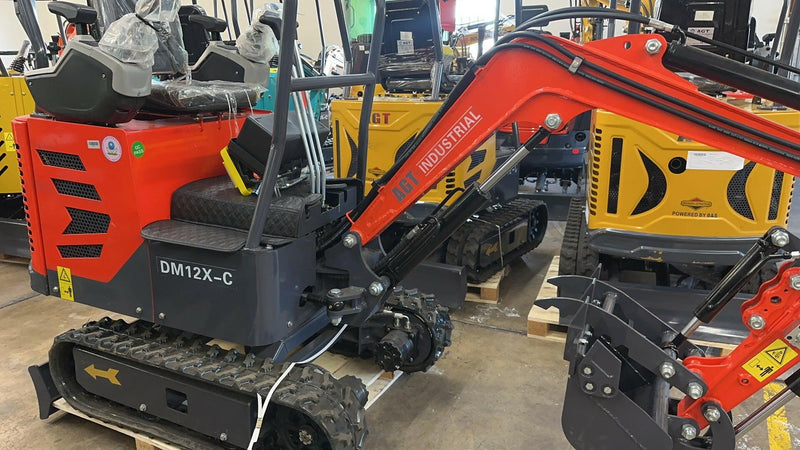

- Swing Boom

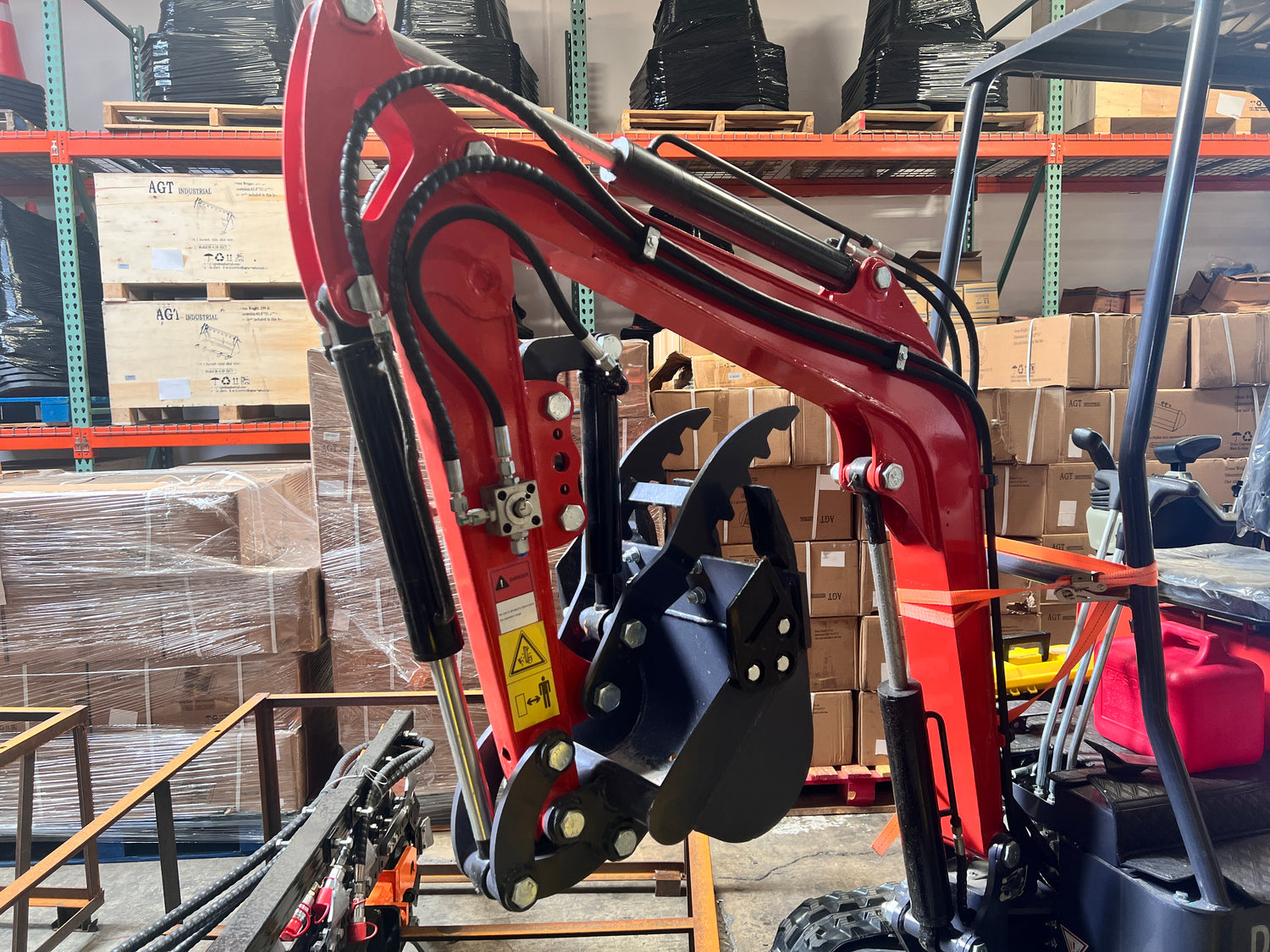

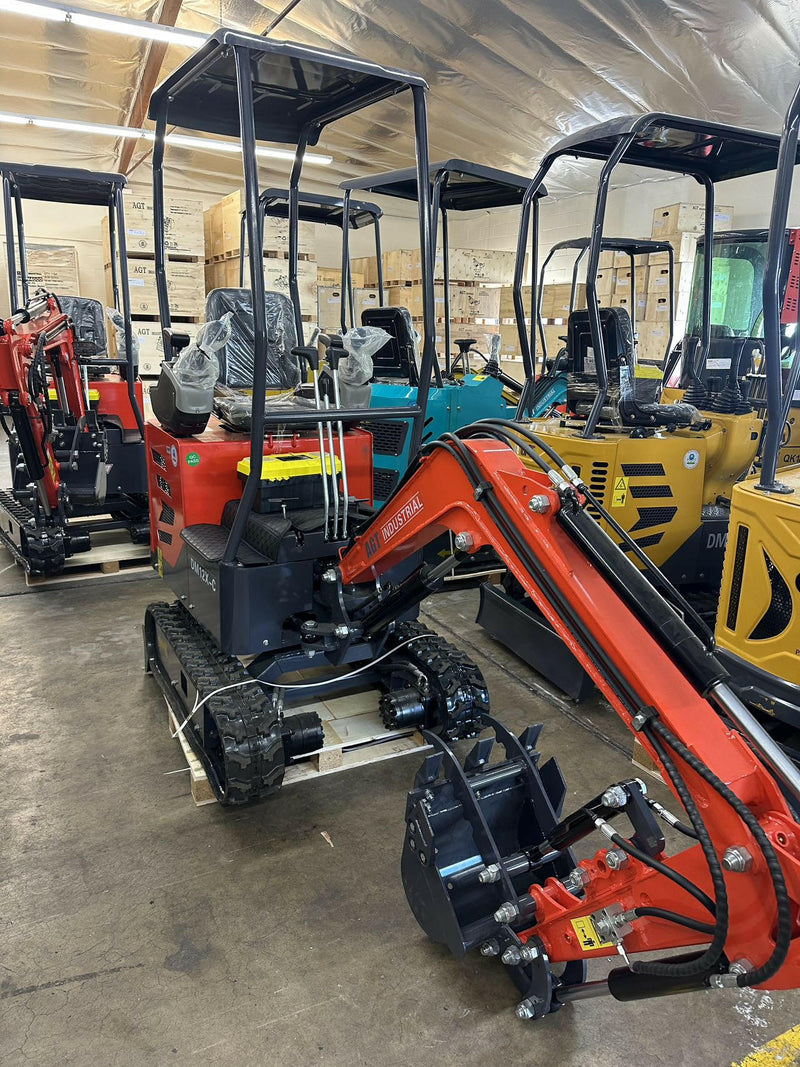

- Hydraulic Thumb
Specific Data:
Dimensions:
- Transport Length: 89 inches
- Transport Width: 38 inches
- Transport Height with Canopy: 87 inches
- Climbing Ability: 30%
- Bucket Width: 14 inches
- Max Digging Radius: 121 inches
- Blade Width: 1.41 inches
- Max Digging Depth: 69 inches
Performance:
- Bucket Capacity: 0.883 cubic feet
- Walking Speed (Low/High): 0-1.24 mph
- Climbing Ability: 30%
- Grounding Specific Pressure: 4.64 psi
Engine:

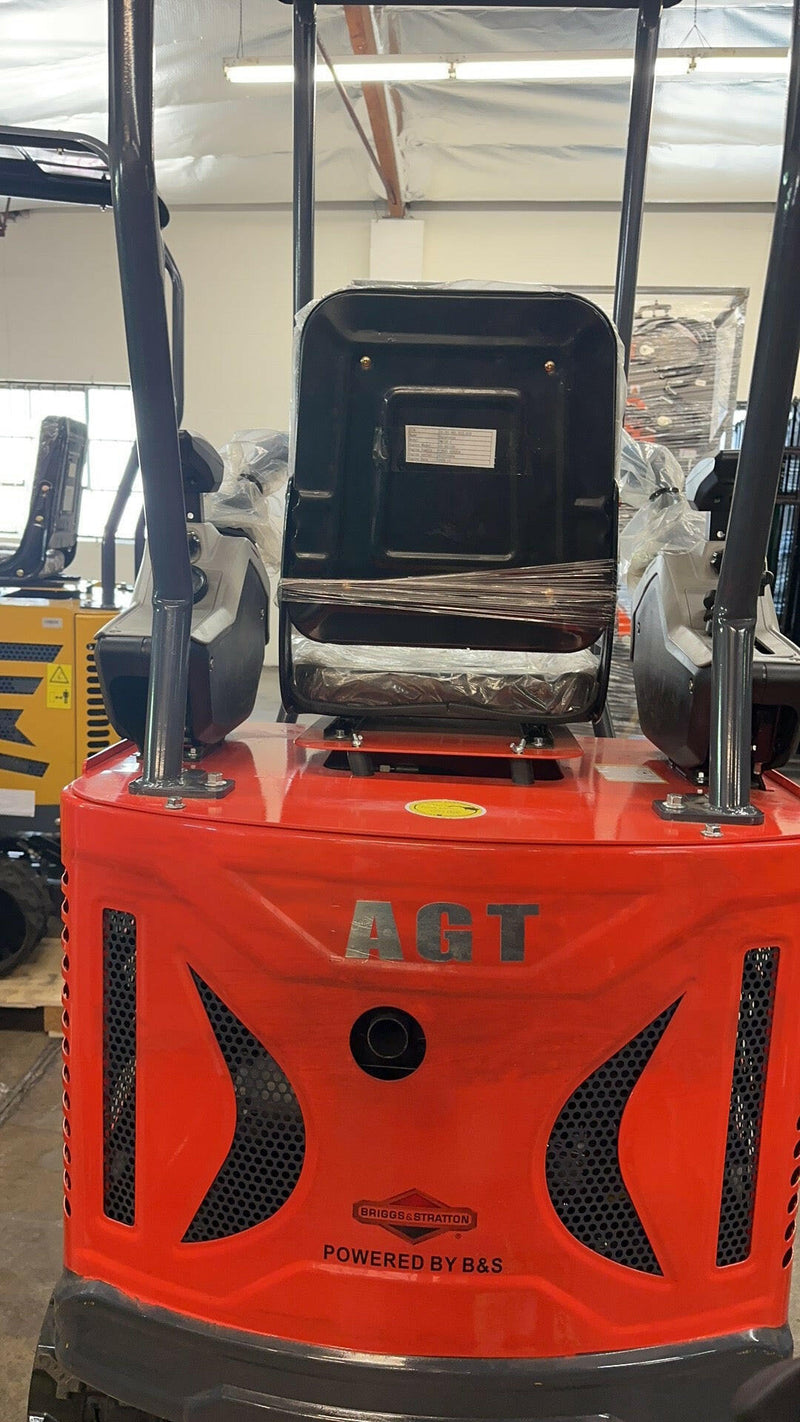

- Engine Brand: Briggs and Stratton
- Engine Model: 13.5HP
- Max Horsepower: 13.3 hp
- Max Digging Height: 105 inches
- Max Unloading Height: 75 inches
Hydraulic System:
- Main Pump Type/Model: Gear pump/06
- Rated Setting Pressure: 2320 psi
- Max Flow of Main Pump: 1.51 gallons/min
- Multi-way Valve: 8-section multi-way valveRated Setting Pressure: 2320 psi
- Max Setting Pressure: 2320 psi
- Travel Hydraulic Motor Type: BM6-310
- Travel Motor Brand: Liyuan
- Rubber (Width/Pitch/Number of Sections): 0.28/0.1137 inches
- Steel (Width/Pitch/Number of Sections): 0.28/0.1137 inches
- Rubber Blocks: Yes
Swing Hydraulic Motor:
- Type: BM2-250
- Displacement: 250
Fuel and Fluid Capacity:
- Fuel Tank Capacity: 1.74 gallons
- Tension Type: Mechanical Tension
- Hydraulic Oil Tank: 4.76 gallons
