SKU AGT-SSHH-750A
Skid Steer 750 Hydraulic Concrete Breaker For Sale| AGT-SSHH-750A
Sold out
Original price
$2,178.00
-
Original price
$2,178.00
Original price
$2,178.00
$2,178.00
-
$2,178.00
Current price
$2,178.00
Click here for more about our skid steer breaker
Technical Details
| Working Weight | 1000 lbs |
| Working Pressure | 210PSI |
| Working Flow | 13-24 GPM (50-90 L/min) |
| Impact Rate | 500-800 BPM |
| Impact Energy | 785 Joule |
| Chisel Diameter | 3'' (75mm) |
| Hydraulic Hose Diameter | 1/2" |
| Package Dimensions | 50.39" × 24.01" × 23.62" |
| Shipping Weight | 1091.28 lbs |
Solutions to common problems
The hammer is not working after the installation
-
Improper bushing replacement. Refit the inner bushing. Make sure to use the original.
-
Quick couplers are installed wrong. Check connectors and replace them as needed.
-
Supply hoses have been reversed. The pressure line from the pump must be connected to the port marked IN. The return line connects to the port marked OUT.
-
Nitrogen pressure is too high, Release nitrogen and recharge as needed.
Why does the hydraulic hammer suddenly stop hammering?
-
The backhead pressure is too high. Release nitrogen and recharge as specified.
-
The backhead is filled with oil. Disassemble the back head and replace the seal.
-
The control valve is stuck. Disassemble and clean the valve, and replace the worn valve.
-
Oil flow is not sufficient. Repair the pump, and adjust the hammer valve.
Features
- Skid steer Concrete Breaker SSHH750 loader: 45-100HP
- Maximized power-to-weight ratio breaking strength
Nitrogen pressure
Product Overview

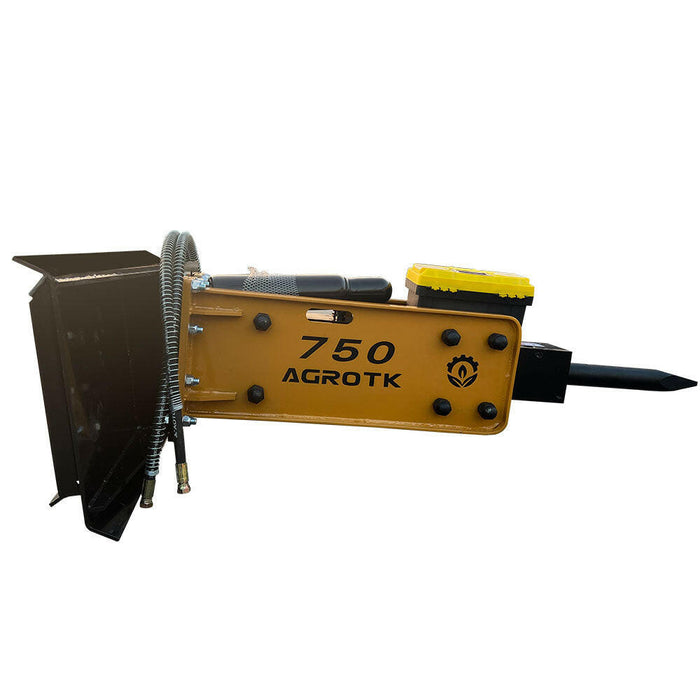

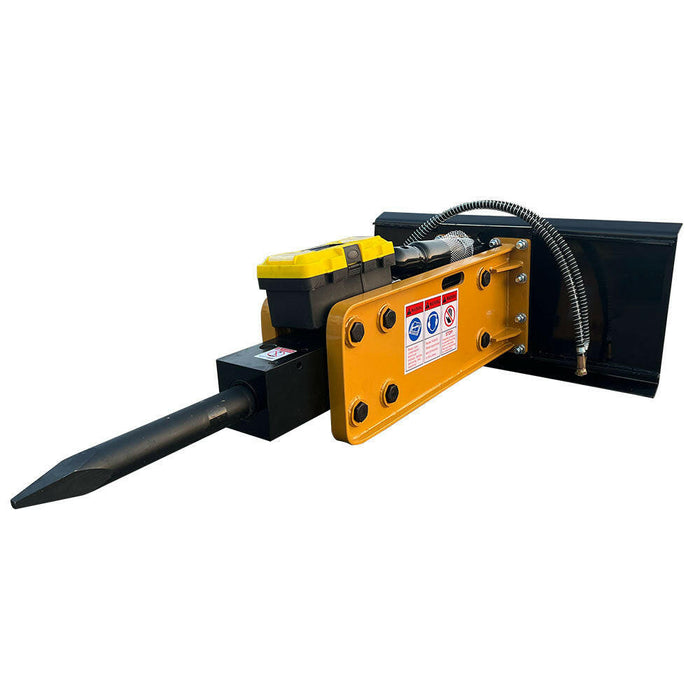

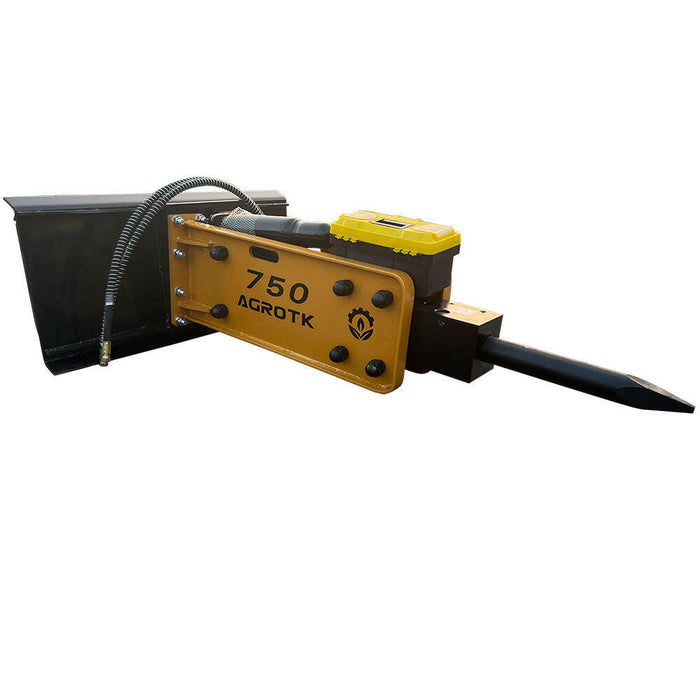

Designed for use with 45-100HP medium to large skid steer loaders, the AGT-SSHH-750A hydraulic breaker hammer gets hard jobs done with ease.
With a 3’’ (75mm) diameter moil point chisel, this hammer is perfect for medium to large jobs including construction, demolition, excavating, and landscaping.
An impact rate of 500-800 BPM combined with 223-240 PSI working flow pressure makes this a versatile and efficient breaking hammer for breaking driveways, demolishing concrete structures, and digging holes.
Includes
