2024 Model

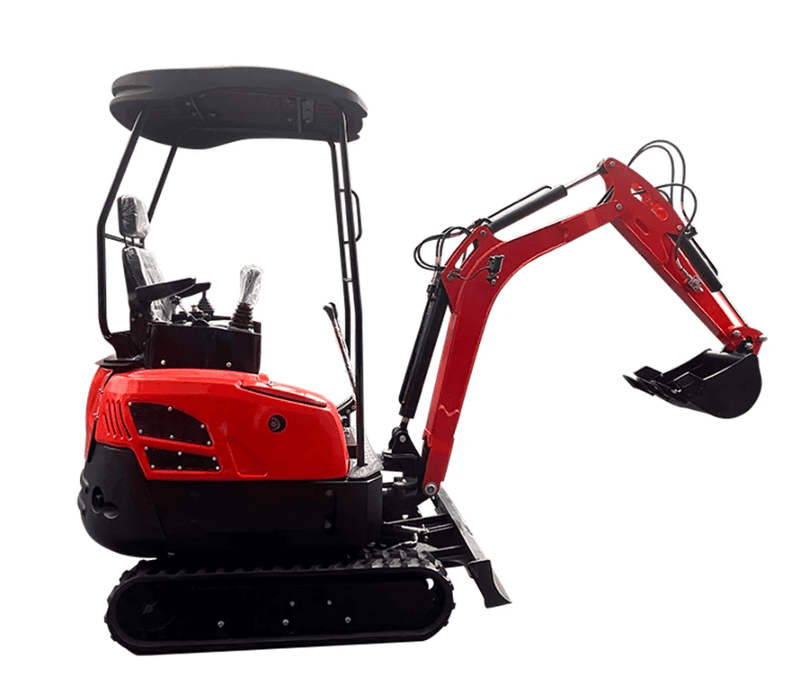

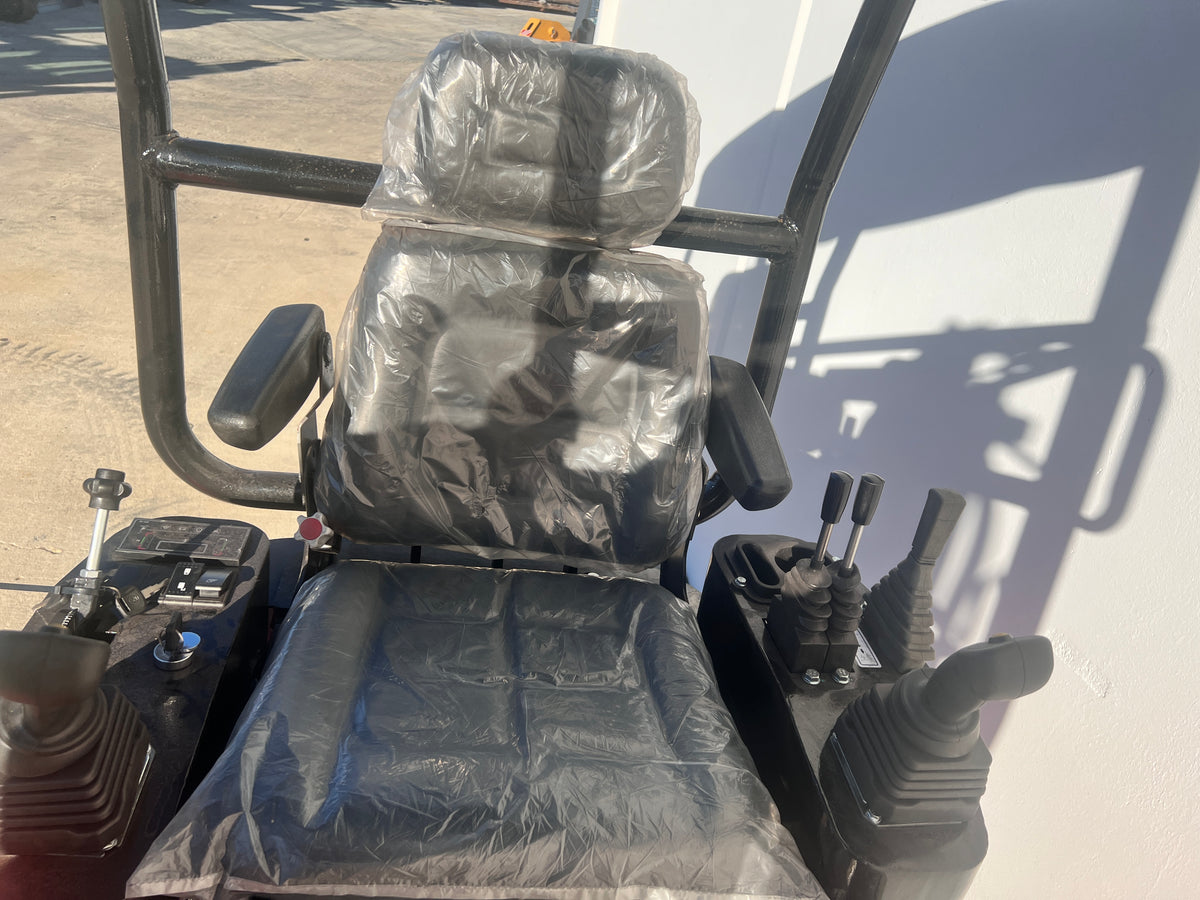

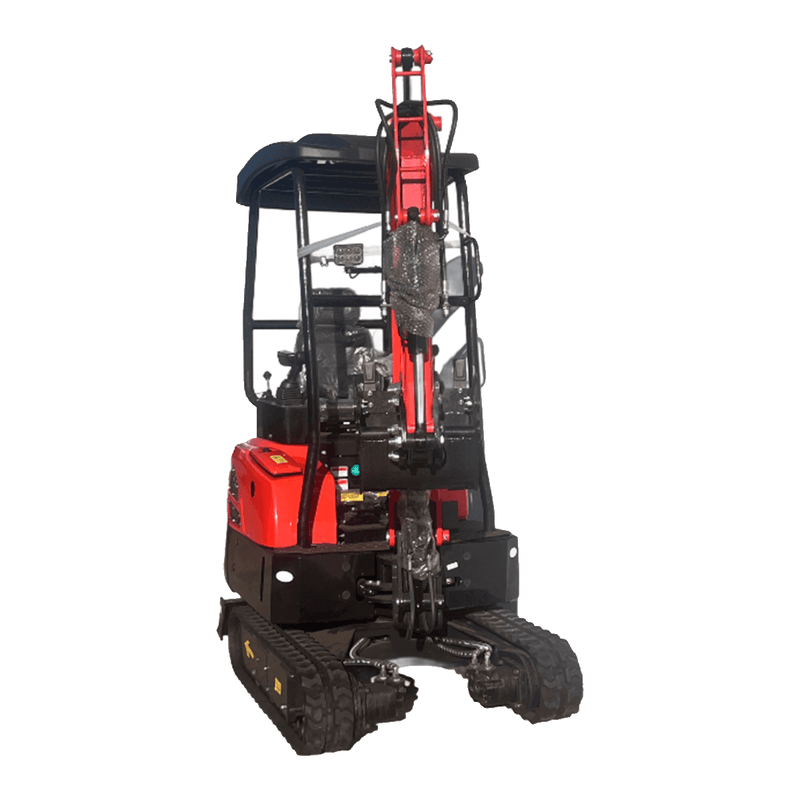

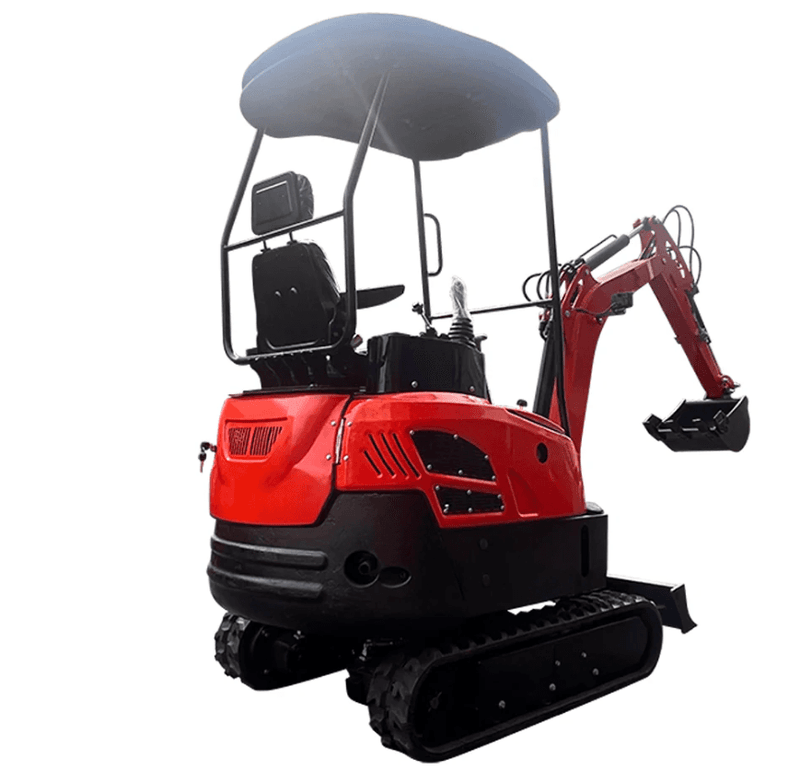

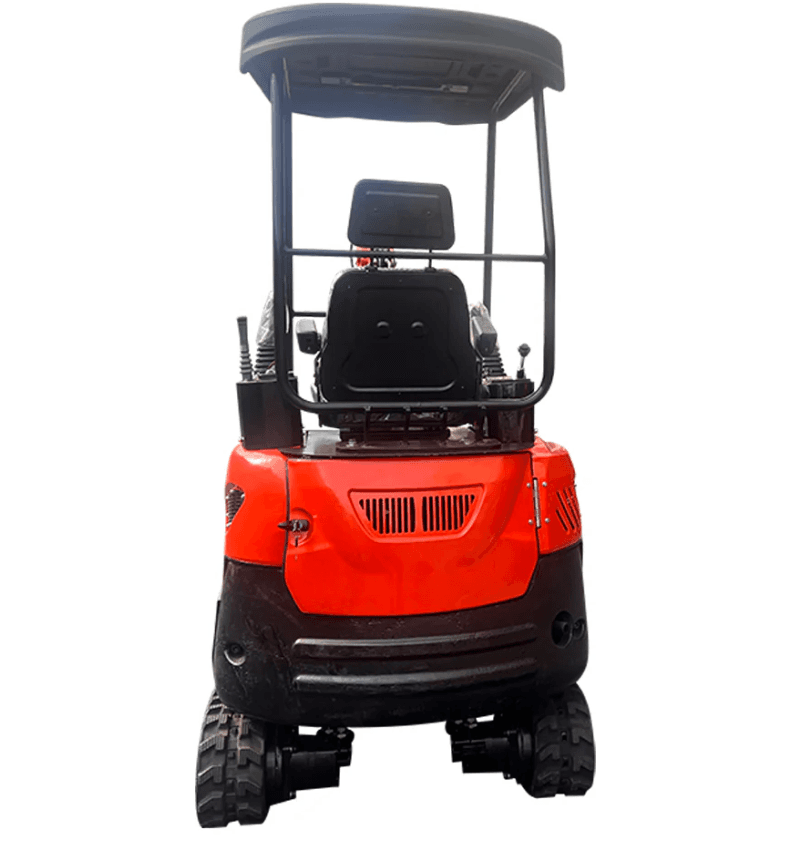

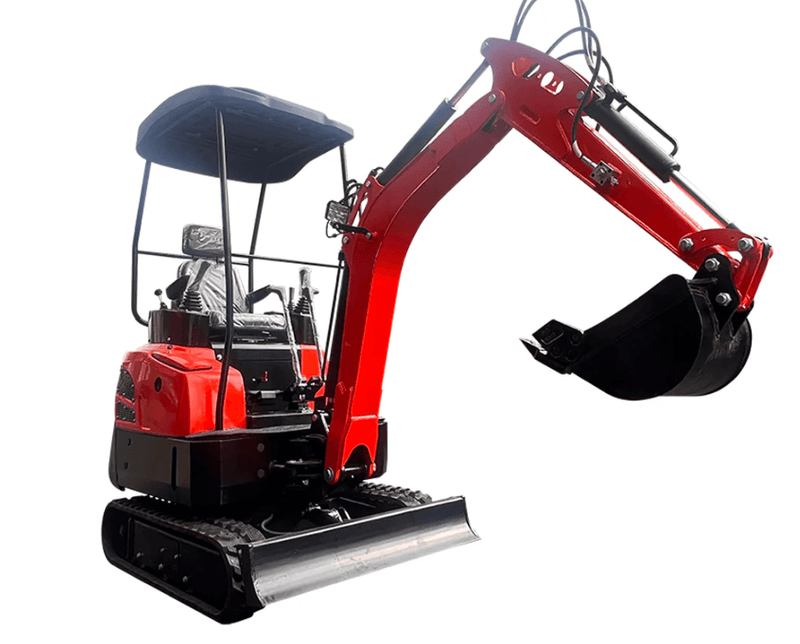

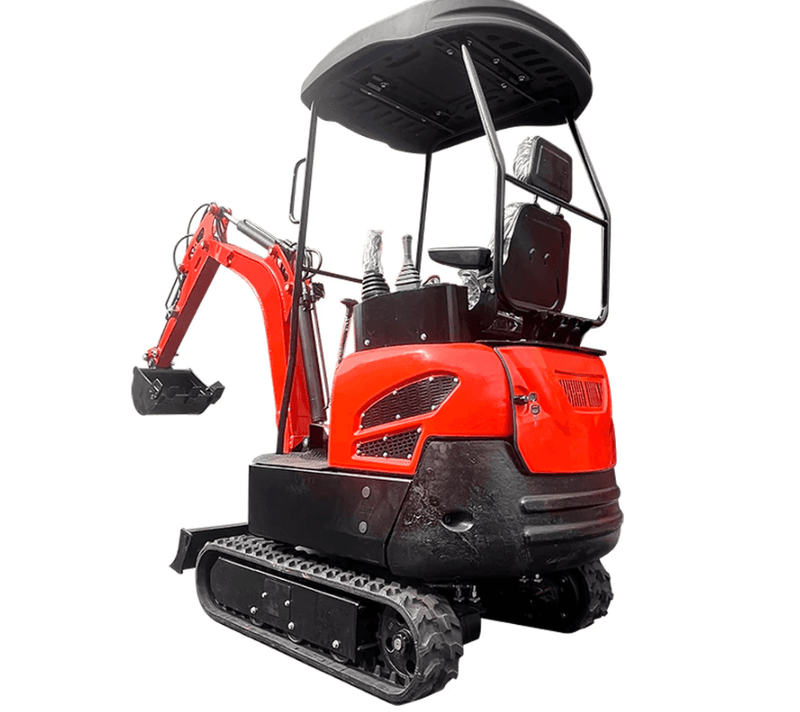

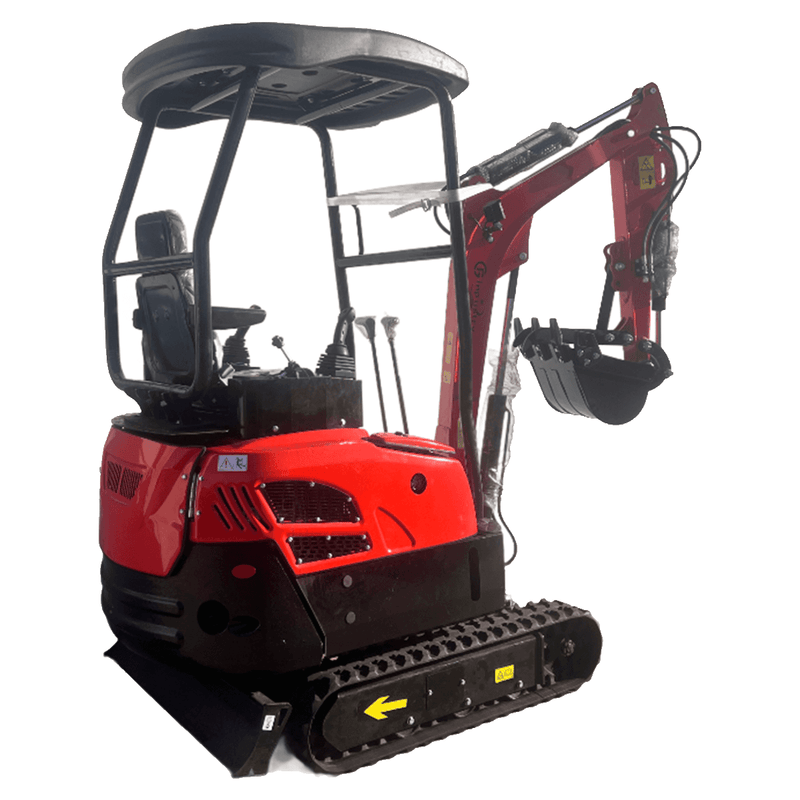

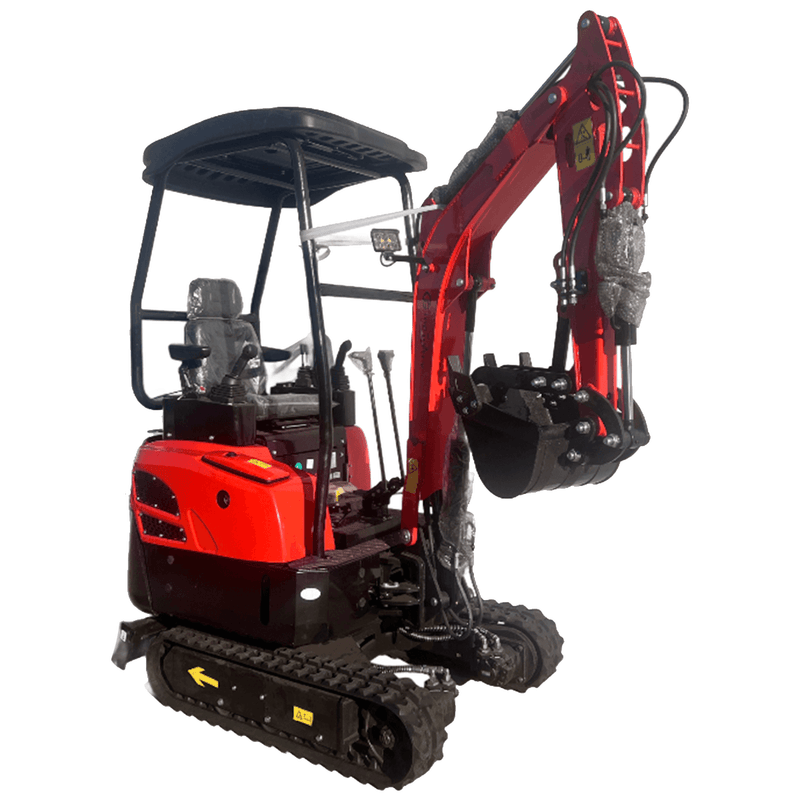

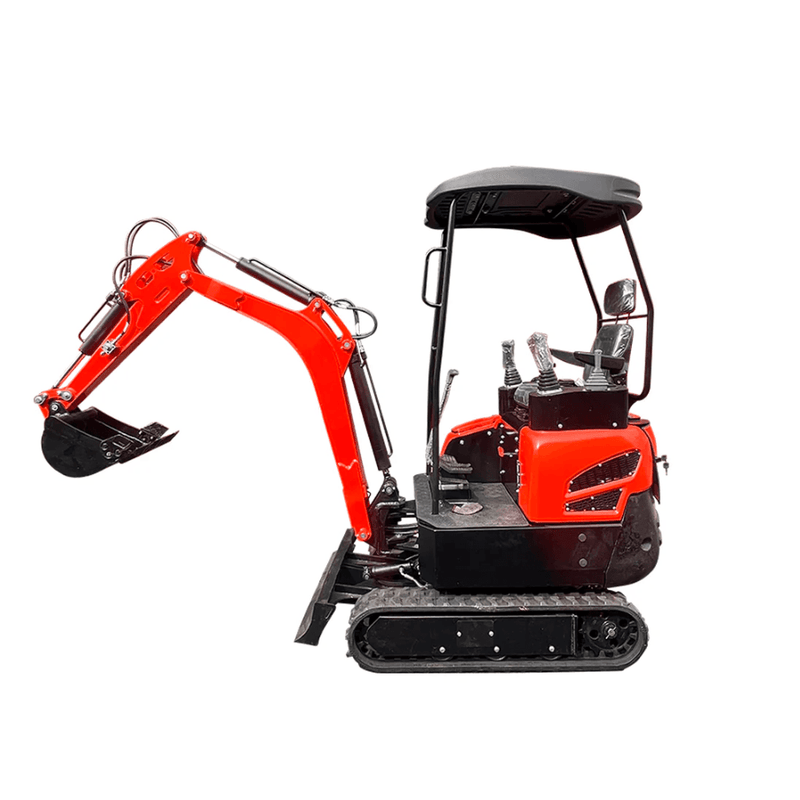

Compact and reliable, the 1.4-ton AGT Mini Excavator offers a 6.96-foot digging depth, air conditioning, a side-swing feature, and an enclosed cab for comfort and dust-free operation, making it ideal for farms, gardens, parks, and tight spaces.

In Action Video

Technical Data:

• Operation Weight: 1.4 Ton
• Engine: Kubota Diesel

Specific Data:

• Total Working Weight: 1370 kg
• Bucket Capacity: 0.04 m³
• Traveling Speed (Low/High): 0-2.0 km/h
• Climbing Capacity: 35%
• Ground Pressure: 32 KPa

Digging Performance:

• Maximum Digging Radius: 3350 mm
• Maximum Digging Depth: 2120 mm
• Maximum Digging Height: 3025 mm
• Maximum Unloading Height: 2245 mm

Hydraulic System:

• Hydraulic Output: 2-way/M16H

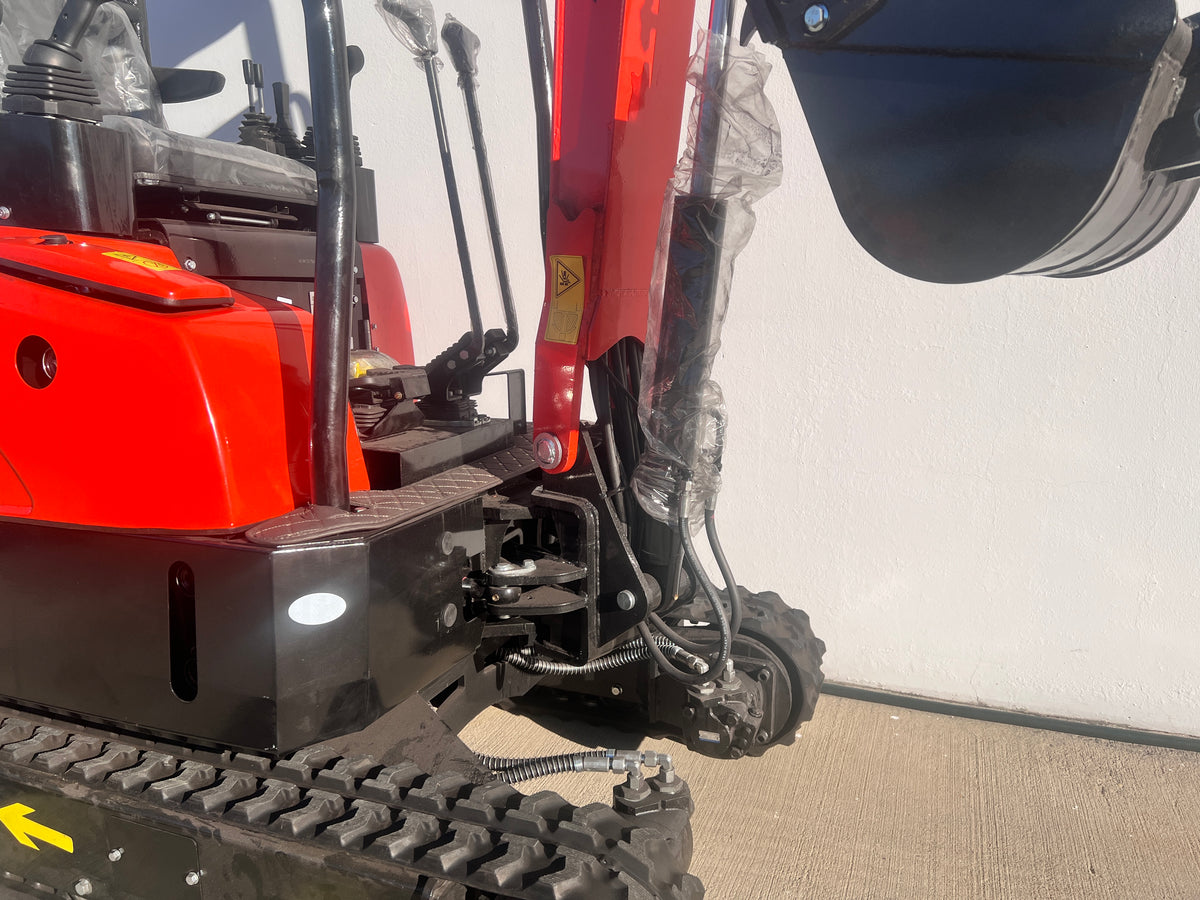

• Side Swing: Left 52° / Right 27°
• Main Pump Type/Model: Gear Pump / 10+03
• Maximum Flow Rate of Main Pump: 28.5 L/min
• Multi-way Valve: 10-connection hydraulic multi-way
• Rated Set Pressure: 18 MPa
• Maximum Set Pressure: 18 MPa
• Traveling Hydraulic Motor Type: BM6K-390
• Motor Displacement: 390
• Rotary Hydraulic Motor Type: BM2-315
• Tensioning Type: Mechanical Tensioning

Tracks & Dimensions:

• Rubber Track (Bandwidth × Pitch × Number of Links): 180 × 72 × 41
• Transportation Length: 3400 mm
• Transportation Width: 1100 mm
• Transportation Height with Canopy: 2280 mm
• Ground Clearance of Upper Plate: 440 mm
• Bucket Width: 385 mm
• Bulldozer Width: 1100 mm

Engine Specifications:

• Engine Brand: Kubota
• Engine Model: D722
• Maximum Power: 10.2 kW
• Maximum Speed: 2850 rpm
• Displacement: 719 CC
• Number of Cylinders: 3
• Cooling Method: Water-cooled

Fuel & Oil System:

• Engine Oil Change Capacity: 3.8 L
• Fuel Type: Diesel
• Fuel Grade: 0#
• Fuel Tank Capacity: 6.7 L
• Hydraulic Oil Tank Capacity: 18 L
• Theoretical Fuel Consumption: 4–5 L/h
• Oil Type: CF-4
