SKU AGT-KH16R

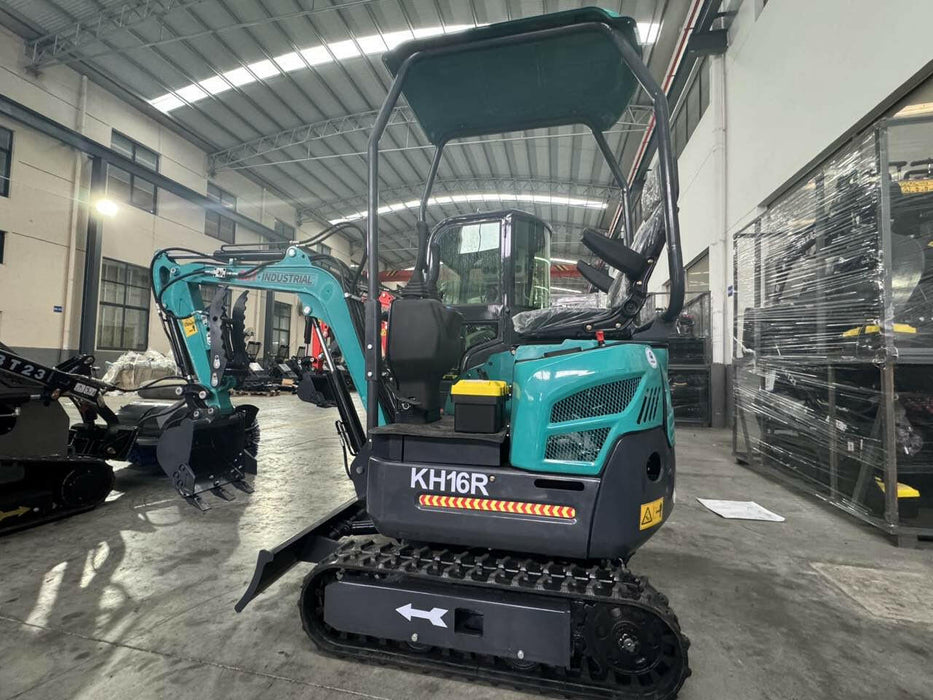

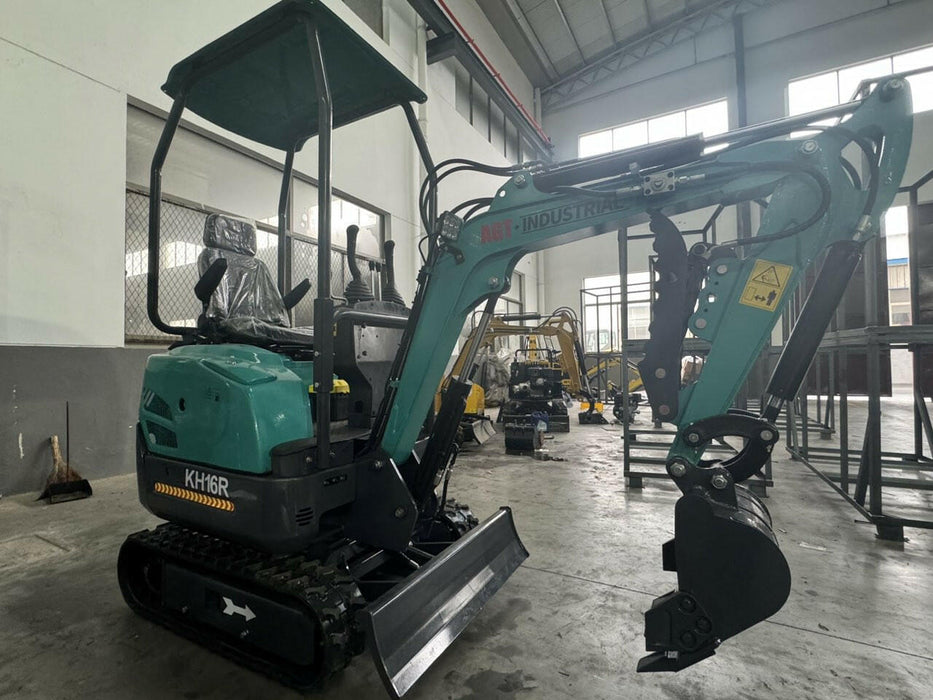

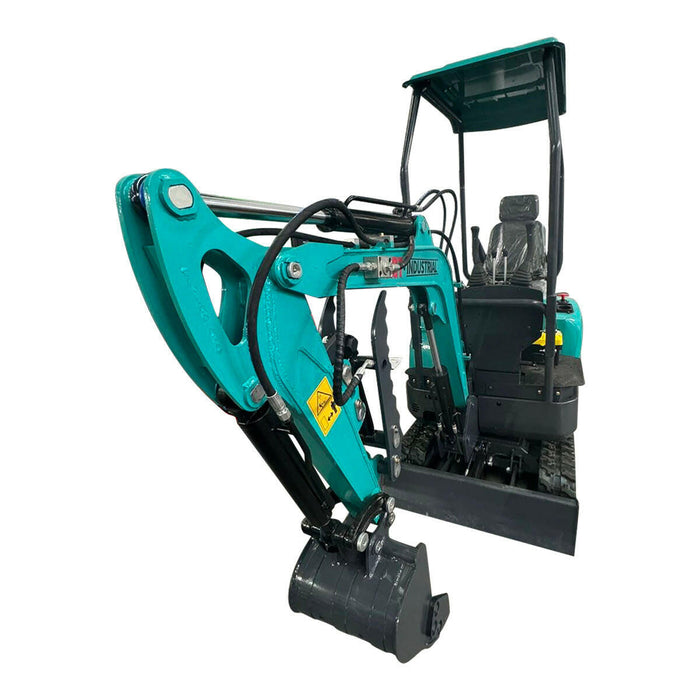

1 Ton, RATO Mini Small Excavator w/ Hydraulic Thumb | AGT-KH16R
Original price
$8,299.00
-
Original price
$8,299.00
Original price
$8,299.00
$8,415.00
$8,415.00
-
$8,415.00
Current price
$8,415.00
The AGT-KH16R is a compact and versatile 1-ton mini excavator designed for various excavation tasks. Below are its detailed technical specifications:
Technical Data:
Engine:
- Brand: RATO
- Displacement: 420cc
- Power Output: 15 HP
- Fuel Type: Gasoline
Performance:
- Operating Weight: 827 kg (1,823 lbs)
- Maximum Digging Depth: 1,670 mm (65.75 inches)
- Maximum Digging Height: 2,400 mm (94.48 inches)
- Maximum Unloading Height: 1,960 mm
- Maximum Digging Radius: 3,060 mm
- Travel Speed: 0-1.8 km/h
- Climbing Ability: 30%
Dimensions:
- Overall Length: 2,870 mm
- Overall Width: 910 mm
- Overall Height: 2,283 mm
- Bulldozer Blade Width: 910 mm
- Bulldozer Blade Height: 210 mm
Hydraulic System:
- Bucket Capacity: 0.016 m³
- Hydraulic Thumb: Included
Undercarriage:
- Track Type: Rubber Tracks
- Track Width: 7 inches
Additional Features:
- Attachments: 16-inch bucket
- Operator Station: Canopy
- Auxiliary Hydraulics: Yes
- Dozer Blade: Included
Specific Data:
|
Model
|
KH16R
|
QH12&H12
|
|
Working Weight(kg)
|
900
|
830
|
|
Bucket capacity(m³)
|
0.016
|
0.03
|
|
Travel speed low/high speed(Km/h)
|
0-1.8
|
0-1.8
|
|
A Maximum Digging Height(mm)
|
2400
|
2550
|
|
B Maximum Unloading Height(mm)
|
1960
|
1780
|
|
C Maximum Digging Depth(mm)
|
1670
|
1644
|
|
E Max. digging radius(mm)
|
3060
|
2960
|
|
Body
|
Model
|
QK16R
|
QH12
|
L12
|
|
J Overall Length(mm)
|
2870
|
2895
|
2200
|
|
|
K Overall Width(mm)
|
910
|
958
|
930
|
|
|
L Overall Height(mm)
|
2283
|
2200
|
2250
|
|
|
Bulldozer Width/Height
|
907/210
|
907/400
|
180/210
|
|
Engine
|
Model
|
QK16R
|
QH12
|
L12
|
|
Engine Brand
|
RATO
|
B&S
|
B&S OR Koop
|
|
|
Engine Model
|
R420D
|
13.5HP
|
KD192F
|
|
|
Max. power(Kw)
|
8.6
|
9.8
|
7.6
|
|
|
Max. speed(rpm)
|
3600
|
3600
|
3600
|
|
|
Cylinders
|
1
|
1
|
1
|
|
|
Cooling method
|
fan cooling
|
fan cooling
|
water cooling
|
|
|
Engine oil change quantity(L)
|
1.1
|
1.1
|
1.1
|
|
|
Fuel Type
|
92# Gasoline
|
92# Gasoline
|
Diesel
|
|
|
Theoretical fuel consumption(L/h)
|
0.5-1.2
|
0.5-1.2
|
1-1.6
|
|
|
Model
|
QK16R
|
QH12
|
L12
|
|
Main pump type/model
|
gear pumps/06
|
gear pumps/06
|
gear pumps/06
|
|
|
Main pump brand
|
Tianjin Xingzou
|
Tianjin Xingzou
|
Tianjin Xingzou
|
|
|
Rated set pressure(Mpa)
|
23.5
|
16
|
23.5
|
|
|
Maximum flow rate of main pump(L/min)
|
21.6
|
21.6
|
21.6
|
|
|
Multi-way valve
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
|
|
Brand of Multi-way valve
|
(Hua Sheng)
|
Hua Sheng
|
Tai Heng
|
|
|
Rated Set Pressure(Mpa)
|
16
|
16
|
16
|
|
|
Hydraulic Linear Motor type
|
BM6-310
|
BM6-315
|
BM6-310
|
|
|
Linear Motor Brand
|
Li Yuan
|
Li Wo
|
Li Yuan
|
|
|
Hydraulic Servo Motor type
|
BM2-250
|
BM2-250
|
BM2-315
|
