The CFG-DY16 is a compact and versatile mini excavator designed for various construction and landscaping tasks.

Technical Data:

• Mini-excavator weight: 1050 kg

• Bucket capacity: 0.022 m³

• Working Device: Backhoe

Engine

• Model: D722-E4B-2FM-1

• Delivery capacity: 1.93

• Rated output power/speed: 10.2 kW / 2500 r/min

• Maximum torque: 42.9 N·m / 2000 r/min

Speed & Performance

• Maximum travel speed: 2 km/h

• Slewing speed: 8 rpm

• Maximum climbing ability: 30°

Size & Dimensions

• Total Length (Transportation): 2873 mm

• Total Width: 930 mm

• Total Height (with/without ceiling): 2257 mm / 2025 mm

Bulldozer

• Blade Width: 937 mm

• Blade Height: 210 mm

• Maximum bulldozing height: 170 mm

• Maximum bulldozing depth: 240 mm

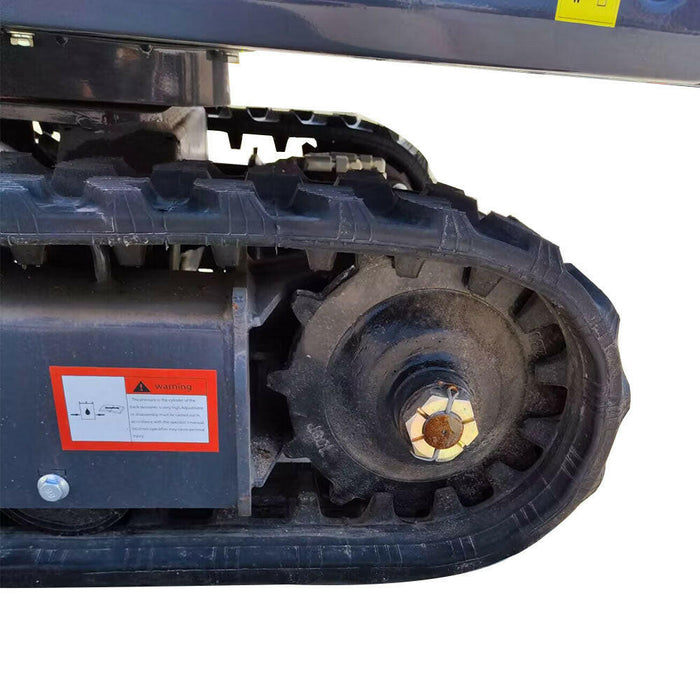

Caterpillar Band Part

• Ground pressure: 0.3 kgf/cm²

• Material: Rubber

• Center Distance: 746 mm

• Standard Board Width: 180 mm

• Total Length of Caterpillar Band: 1200 mm

• Tension Type: Grease cylinder

Hydraulic System

• Pump Type: Gear pump

• Working Pressure: 16 MPa

• Flow Rate: 17.6 L/min

Fluid Capacities

• Hydraulic Tank Capacity: 15 L

• Engine Oil Capacity: 3.5 L

• Fuel Tank Capacity: 16 L

Scope of Work

• Maximum Excavation Height: 2483 mm

• Maximum Unloading Height: 1738 mm

• Maximum Excavation Depth: 1721 mm

• Maximum Vertical Arm Excavation Depth: 1645 mm

• Maximum Excavation Distance: 3034 mm

• Minimum Turning Radius at Front End: 1941 mm

• Maximum Excavation Ground Distance: 2938 mm
