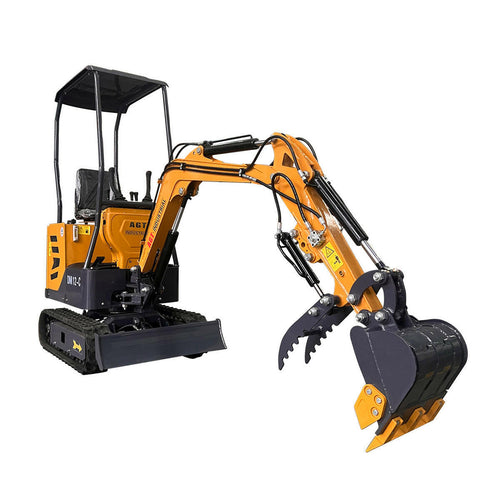

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.
Technical Data:
- Operation Weight: 0.959 Ton
- Engine: B&S
- Horse Power: 13.5
-
Max Angle: 30 Degree
Specific Data:
Body:
Transport length : 2260mm
Transport width : 958mm
Transport height including ceiling : 2200mm
Bucket width :359mm
Oil Tank:
Fuel tank(L): 6.6
Hydraulic oil tank (L): 18
| Machine working weight (lbs) | 1918 |
| Engine brand | B&S |
| Bucket capacity (m3) | 0.025 |
| Walking speed low/high speed(km/h） | 0-2 |
| Climbing ability (%) | 30 |
| Grounding specific pressure (Kpa) | 32 |
| Maximum digging radius |
3080mm（121.26in） |
| Maximum digging depth | 1764mm（69.45in） |
| Maximum digging height | 2670mm（105.12in） |
| Maximum unloading height |
1900mm（74.8in） |
| Engine model | 13.5HP |
| Maximum horsepower (ps) | 13.3 |
| Maximum power (Kw) | 9.8 |
Hydraulic System:
| Rated set pressure(Mpa): | 16 |
| Max. flow rate of main pump(L/min): | 21.6 |
| Multi circuit valve : | 8 Multiway Valve |
| Multi-way valve brand: | North |
| Rated set pressure(Mpa): | 16 |
| Max. set pressure(Mpa): | 16 |
| Traveling hydraulic motor type: | BM6-310 |
| Traveling Motor Brand: | IC Base |
| Motor Displacement: | 310 |
| Rotary hydraulic motor type: | BM2-250 |
| Tensioning form | Mechanical Tension |
