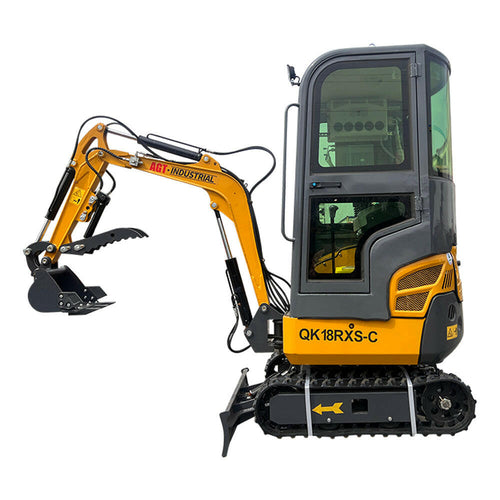

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. With air conditioning, side swing and enclosed cab: Give you a comfortable work experience while you work. The cab keeps out the dust.
Technical Data:
- Operation Weight: 1.08 Ton
- Engine: Rato
- Max Angle: 30 Degree
Specifics：
Fuel tank: 6.6L
Hydraulic oil tank: 20L
Fuel Type: Gasoline
Fuel Type: #92
Air conditioning: √
Side Swing: √
Cab: √
| Operation Weight | 980kg |
| Engine | RATO |
| Travel speed low/high (km/h) | 0-1.8 |
| Capacity of bucket | 0.03 m³ |
| Max Digging Depth | 1693mm |
| Max Digging Height | 2560mm |
| Max Load Height | 1800mm |
| Min Rotation Radius | 3060mm |
| Max Angle of Climb | 15° |
| Side Swing Angle | 30° |
Hydraulic System:
| Total length | 2925mm |
| Overall width | 958mm |
| Total Height | 2422mm |
| Maximum speed (rpm) | 3600 |
| Rated set pressure (Mpa) | 25 |
| Maximum power | 8.5 |
| Main pump type | GP510803 |
| Maximum flow rate of main pump(L/min) | 21.6 |
| Multi circuit valve | 4 mechanical + 4 hydraulic |
| Rotary hydraulic motor type | BM2-315 |
| Traveling hydraulic motor | BM6-315 |
