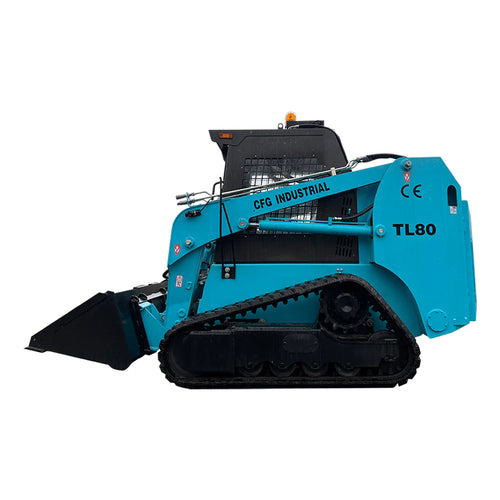

ompact Track Loader with Loong Engine - 74.8 HP

This compact track loader is powered by a robust Loong Engine, delivering 74.8 horsepower and high efficiency. Ideal for heavy-duty applications, this machine boasts impressive power, advanced hydraulics, and versatile performance.

Engine & Performance:

• Engine Model: Loong Engine, with 2,800 cc displacement and 4 cylinders.
• Horsepower: 74.8 HP, offering ample strength for tough tasks.
• Rated Speed: 2,500 RPM, ensuring smooth operation and high productivity.
• Turbocharged Intake: Enhances engine efficiency and power delivery.

Capabilities:

• Rated Load Capacity: 1,100 kg, allowing it to handle substantial loads.
• Maximum Breakout Force: 21 kN, providing superior lifting and digging power.
• Bucket Capacity: 0.5 m³, suitable for a variety of material handling tasks.
• Travel Speed: Ranges from 9 to 18 km/h, ensuring speed and agility on the job site.

Efficiency & Design:

• Work Cycle Time: 10.29 seconds, for fast and efficient operations.
• Working System Pressure: Adjustable between 9 and 18 bar, delivering the hydraulic force needed for demanding applications.
• Fuel Tank Capacity: 80 liters, supporting long hours of continuous operation.
• Operating Weight: 4,100 kg, offering stability in heavy-duty tasks.

Dimensions & Functionality:

• Maximum Operating Height: 4,065 mm, perfect for high-reach tasks.
• To Bucket Pin Height: 3,150 mm, allowing versatility in various applications.
• Overall Height: 2,160 mm, providing a compact profile without sacrificing power.
• Bucket Flat Max Height: 2,730 mm, for efficient loading at different heights.
• Overall Length: 2,750 mm (without tools), 3,650 mm (with bucket), making it compact yet highly capable.
• Dump Height: 2,230 mm with a maximum dump angle of 40°, ensuring smooth material unloading.

Additional Features:

• Bucket Flip Angle: 104° at maximum height, ensuring efficient material dumping, with 30° at ground level for versatility.
• Ground Clearance: 200 mm, providing the ability to navigate uneven terrain.
• Track Width: 1,782 mm, combined with a bucket width of 1,880 mm, ensures excellent stability and capacity.

This loader is built for operators seeking a balance of power, precision, and versatility across various heavy-duty tasks. Order now and enhance your operational efficiency!
