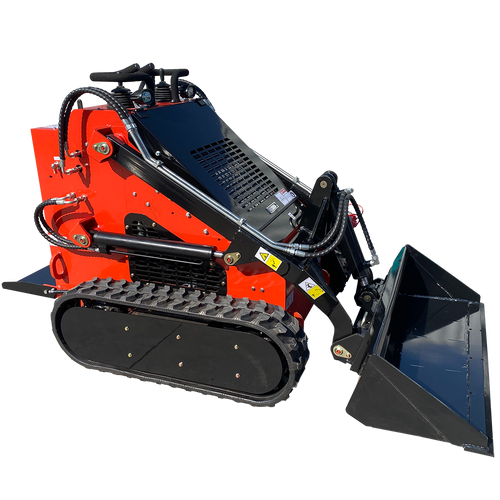

The CFG-LBT23 Mini Stand-On Skid Steer is a compact and versatile machine designed for efficient operation in tight spaces. With its powerful hydraulics and user-friendly controls, it handles tasks like digging, lifting, and landscaping with ease.
Technical Data:
- Operation Weight: 1 Ton
- Engine: B&S
Parameter
Performance
| Max.Load Capacity | 200 kg |
| Bucket Capacity | 0.15 m³ |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-6 km/h |
| Rated Pressure | 17 Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time | 1.5 s |
| Maximum Angle of the climb | 30° |
| Total Weight | 890 kg |
Engine parameter
| Engine | B&S 3864 engine |
| Engine type | gasoline, V-double cylinder |
| Output power | 17.1KW(23HP)/3600rpm |
| Fuel consumption | ≤6.7 L/h |
| Starting mode | Electric start |
Tank capacity
| Fuel Tank Capacity | 25 L |
| Hydraulic Tank Capacity | 25L |
| Engine oil tank capacity | 1.7 L |
