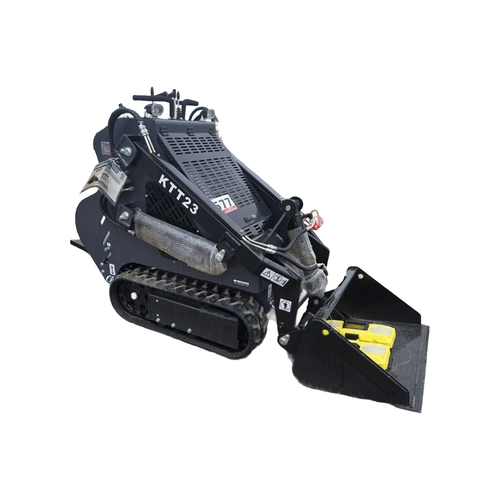

The compact and powerful skid steer features a maximum load capacity of 220 kg, a bucket capacity of 0.15 m³, and a RATO gasoline engine with 16.8KW output power.
Technical Data:
- Operation Weight: 1 Ton
- Engine: RATO Gasoline
Specific Data:
| Max Load Capacity | 220 kg |
| Bucket Capacity | 0.15 m³ |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-5.5 km/h |
| Rated Pressure | 16Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time | 1.5 s |
| Maximum Angle of the climb | 30° |
| Total Weight | 905 kg |
| Engine | RATO |
| Engine type | gasoline, V-double cylinder |
| Output power | 16.8KW(23HP)/3600rpm |
| Fuel consumption | ≤6.7 L/h |
| Starting mode | Electric start |
Tank capacity
| Fuel Tank Capacity | 25 L |
| Hydraulic Tank Capacity | 25L |
| Engine oil tank capacity | 1.6 L |
